Birddog X1 Ultra 4K PTZ Cam with 12xZoom & NDI

Birddog X1 Ultra 4K PTZ

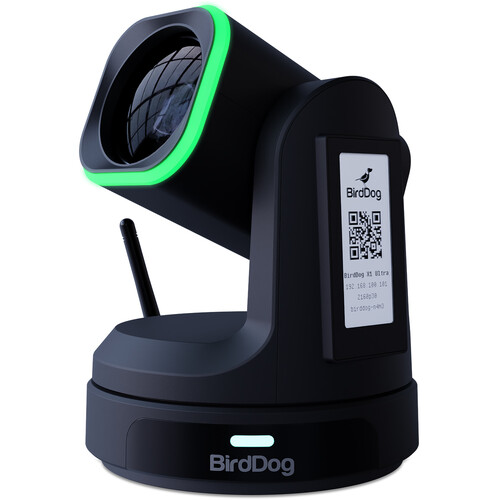

Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this black X1 Ultra PTZ Camera with 12x Zoom from BirdDog. Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

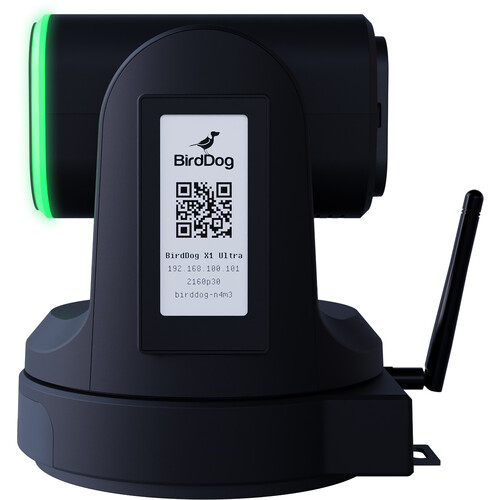

Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93″ E-Ink display augment the camera’s broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Integrated NDI Decoder

The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

AI Tracking

Keep your subject in focus with AI tracking technology, intelligently following your subject’s movements in real-time. Whether you’re orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

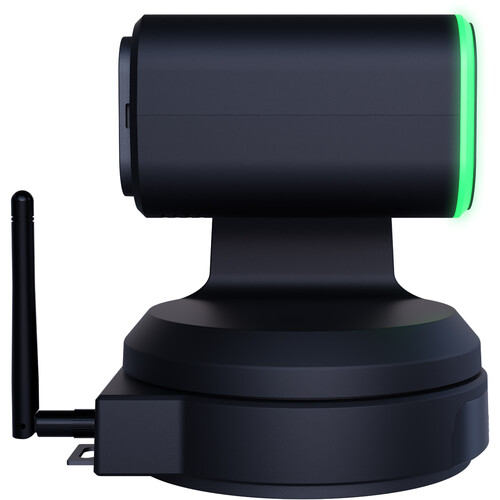

Wi-Fi Connectivity

No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it’s hard to run a cable, seamlessly integrating into any environment.

NDI|HX2 & NDI|HX3 Integration

Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

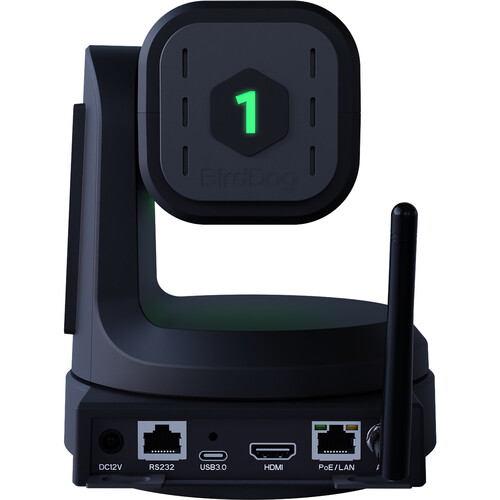

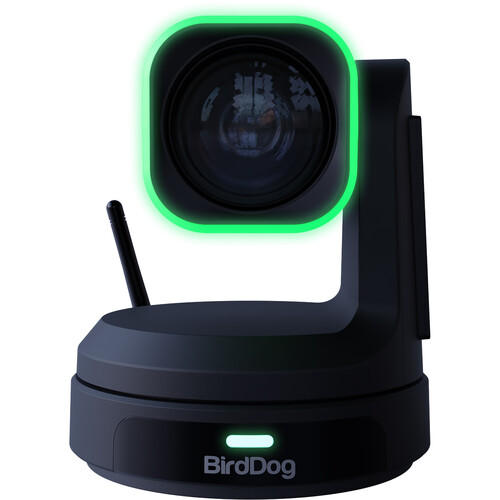

Built-In Halo Tally Light

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.

Image Sensor	1/2.8″-Type
Effective Sensor Resolution	8.29 Megapixel (3840 x 2160)
Shutter Speed	1/10000 to 1/25 Second
Max Optical Zoom	12x
Max Video Output	via RJ45 / USB / HDMI Up to UHD 4K at 25/30.00/29.97 fps
Max Recording Modes	No
Broadcast Output	NTSC/PAL
IP Streaming	RTSP/RTMP/NDI HX3/NDI HX2 3840 x 2160 at 30p
Wireless	Wi-Fi 5 (802.11ac) / IR
PoE Support	Yes: PoE 802.3af
Mounting	1x 1/4″-20 Female

Image Sensor	1/2.8″-Type CMOS
Horizontal Resolution (TV Lines)	2160 TV Lines
Effective Sensor Resolution	8.29 Megapixel (3840 x 2160)
IR Cut Filter	No
Focus Control	Autofocus Manual Focus

Shutter Speed	1/10000 to 1/25 Second
Signal-to-Noise Ratio	50 dB
White Balance	Range: 2500 to 9000K Presets: Manual, VAR

Focal Length	4.1 to 49.2mm
Max Optical Zoom	12x
Field of View	Horizontal: 70.28 to 6.57° Vertical: 42.06 to 3.76° Diagonal: 78.36 to 7.5°
Maximum Aperture	f/1.8 to 2.68

Video Output	via RJ45 / USB / HDMI 3840 x 2160 at 25/30.00/29.97 fps 1920 x 1080p at 25/29.97/30.00 fps 1280 x 720 at 25/29.97/30.00 fps
Embedded Audio	HDMI/LAN (RJ45)/SDI
Internal Recording	No
Broadcast Output	NTSC/PAL
IP Streaming	RTSP/RTMP/NDI HX3/NDI HX2 3840 x 2160 at 30p
