Product Description

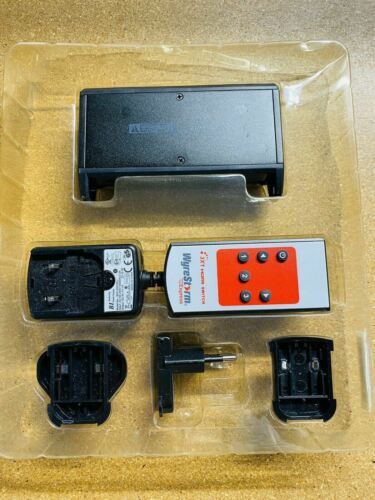

HDMI ESSENTIALS, MADE SIMPLE.US OFFICE: TEL: +1 901 384 3575 FAX: +1 901 384 3574EMEA OFFICE: TEL: + 44 (0) 1793 230 343 FAX: + 44 (0) 1793 230 583WyreStorm Express is a plug and play range of HDMI distribution solutions for the home or any venue that makes everyday video connectivity and setup, simple.WyreStorm Express products offer straight-forward HD switching, distribution and cable solutions all are 3D compatible and designed to work with the latest video source components (satellite and cable boxes), gaming devices and flat panel displays.The WyreStorm Express EXP-SW0301-010 is a 3 input to 1 output HDMI switcher that enables users to connect 3 HDMI sources to the one device to be simultaneously distributed to a single HDMI output with control via front panel or IR/remote handset. The EXP-SW-0301-010 supports high definition audio and all video formats up to 1080p/60HZ with full 3D support. Whatever the project, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm EXP-SW0301-010 represents a reliable and cost-effective means of quickly achieving your goal.
Specs
WyreStorm EXP-SW Specs
Input 3 x HDMI type A 1.3b
Output 1 x HDMI type A 1.3b
Video Amplifier Bandwidth 6.75 Gbps
Input Video Signal 0.5-1 V p-p, Resistance: 75 Q
Input DDC Signal 5 V p-p (TTL)
Supported Input Resolutions Up to 1080p60, 1080i, 720p, 576p, 480p, 576i, 480i, and UXVGA resolutions up to 1920 x 1200
Color Depth 1080p 24-bit color depth
Audio Formats Supported Up to 7.1 DTS-HD Master Audio and Dolby TrueHD
Maximum Pixel Clock 297 MHz
Transmission Distance HDMI: 49 ft (15 m) max. using 24 AWG HDMI cable), 33 ft (10 m) using 28 AWG HDMI cable
For further distances, HDMI repeater or extenders are supported, such as those from WyreStorm
EDID Learning Yes
HDCP Compliance Yes
Power Supply Input: 100- 240 VAC, 50/60 Hz
Output: 5 VDC, 1 A
Max Power Consumption 4 W
Operating Temperature 32 to 95°F (0 to 35°C)
Operating Humidity 5 – 90%, non-condensing
Dimensions 4.7 x 0.75 x 2.7″ (12 x 2 x 7 cm)
Weight 1.5 lb (0.7 kg)
