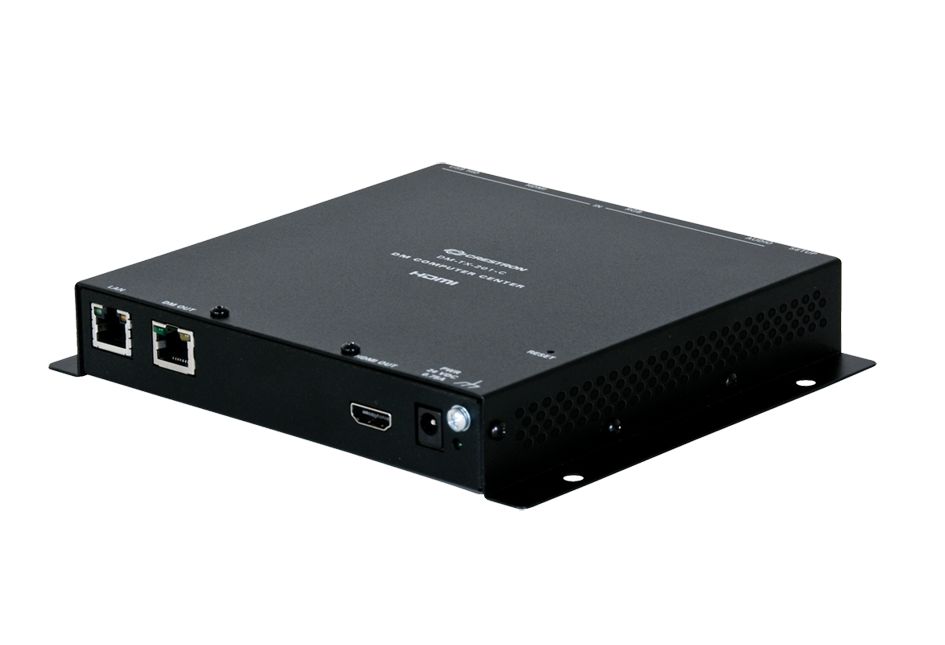

Crestron DM-TX-201-C DigitalMedia 8G+ Transmitter

Crestron DM-TX-201-C DigitalMedia 8G+ Transmitter

Model: ACCRHD

Product Highlights:

DM-TX-201-C

DigitalMedia 8G+® Transmitter 201

Provides a remote input connection for HDMI® and VGA sources as part of a complete DigitalMedia™ System. Connects to the DM 8G+® input of a DM® Switcher or Receiver via CATx cable. Includes a USB HID device port, allowing the connected host device to be controlled by a keyboard and mouse at a different location.

This is an ideal compliment for HDBaseT equipped projectors such as the Panasonic PT-EZ580 to achieve distances from source to projector of up to 330′ over Cat5/6.

Product Description

DigitalMedia 8G+®
As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM®) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G™ (DM 8G®). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, Ethernet, and control signals over a choice of twisted pair or fiber optic cable.

DM 8G over twisted pair copper wire is called DigitalMedia 8G+ (DM 8G+). DM 8G+ handles uncompressed Full HD 1080p video signals with support for HDCP, as well as computer signals up to WUXGA. All signals are transported over a single CAT type cable, supporting distances up to 330 feet (100 m) using Crestron DM 8G Cable or CAT5e.^[1]

HDBaseT® Certified
Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ output, the DM-TX-201-C can be connected directly to an HDBaseT compliant device without requiring a DM receiver.

Multimedia Computer/AV Interface
The DM-TX-201-C provides simple switching between two inputs. The inputs can be configured to switch automatically or be controlled through a Crestron control system. Inputs include:

HDMI — Provides a digital multimedia input for mobile devices, computers, and AV sources with resolutions up to HD 1080p60 and WUXGA. Also handles DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.^[2]
RGB — This VGA type input handles analog RGB signals up to WUXGA 1920×1200 pixels, as well as analog video up to 1080p60.^[3] A 1/8″ (3.5 mm) stereo audio input is included to accommodate the analog audio signal from an unbalanced line-level source or headphone output.

Note: Analog audio breakaway capability enables the analog audio input to be used with either video input.

A single CAT type cable connects the DM-TX-201-C to a DM switcher or receiver, or to an HDBaseT device, transporting video, audio, control, networking, and power signals all through one simple RJ45 connection.^[1,4,5] Used with a single DM 8G+ Receiver/Room Controller and optional Crestron control system, the DM-TX-201-C affords a simple solution for extending a computer or AV signal to a single display. As part of a larger system using a DM-MD series switcher, multiple DM-TX-201-Cs may be installed to enable the distribution of several sources at different locations to feed multiple displays throughout any room or larger facility.

Local HDMI Output
An HDMI output is included to enable pass-through of the selected video and audio signals to feed a local display, monitor, or sound system.

LAN Connectivity
Along with high-definition AV and control, DigitalMedia also integrates high-speed Ethernet networking for a total signal distribution solution. The DM-TX-201-C includes a 10/100 Ethernet port, which can be used to provide a convenient LAN connection for a local network device.

USB Signal Extension
The DM-TX-201-C also functions as a keyboard/mouse extender, allowing the connected computer (or other USB HID-compliant host) to be controlled by a mouse and/or keyboard located at a presentation lectern, conference table, or some other remote location. Additional USB devices of virtually any type can be supported using Crestron USB over Ethernet Extenders (USB-EXT-DM).^[6]

CEC Embedded Device Control
DigitalMedia provides an alternative to conventional IR and RS-232 device control by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-TX-201-C provides a gateway for controlling the connected source device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.

Crestron Connect It™
A Crestron Connect It Cable Caddy (TT-100 series) offers a convenient tabletop connectivity solution that works with the DM-TX-201-C. The cable caddy gets its control from the DM-TX-201-C through a simple USB connection.^[7]

Compact and Versatile
The DM-TX-201-C is designed to be mounted to a flat surface or placed on a shelf. It is compact enough to fit discreetly inside a presentation lectern or beneath a table, and can even be attached to a rack rail in the back of an equipment cabinet. The unit can be powered using the wall mount power pack (included), or PoDM (Power over DigitalMedia) for a true one-wire solution.^[4,5] An array of indicators is provided for easy setup and troubleshooting.

A Digital Upgrade for Legacy Systems
The DM-TX-201-C also affords a perfect signal converter for integrating DigitalMedia with analog-based systems like Crestron MPS, QuickMedia®, and the CEN-RGBHV Series. A simple HD15 VGA cable connected between the output of an MPS system and the input of the DM-TX-201-C allows every RGB, component, S-Video, and composite video input on the MPS to be converted to DigitalMedia.^[3] Analog audio is converted similarly through an unbalanced stereo audio cable. The DM-TX-201-C’s HDMI input may also be used to expand the input capabilities of the MPS system to handle digital AV sources.

Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.

Key Features

DigitalMedia 8G+® transmitter and multimedia interface
Built-in 2×1 AV switcher with auto-switching and analog audio-breakaway
QuickSwitch HD™ technology achieves fast, reliable switching
Connects to a DM® switcher or receiver over a single CAT type twisted pair cable^[1]
Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e^[1]
HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
Provides HDMI® and RGB/component video inputs^[3]
Also supports DVI and Dual-Mode DisplayPort sources^[2]
Handles video resolutions up to Full HD 1080p
Handles computer resolutions up to WUXGA
Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
Includes an unbalanced stereo analog line-level audio input
Allows embedding of stereo 2-channel analog audio signals
Includes a local HDMI output
HDCP compliant
Detects and reports detailed video and audio input information
Performs automatic AV signal format management via EDID
Provides a 10/100 Ethernet LAN connection
Enables device control via CEC and Ethernet
Enables USB HID signal extension for a local computer
Compatible with Crestron® USB over Ethernet Extenders^[6]
Compatible with Crestron Connect It™ Cable Caddies^[7]
Allows quick, easy setup and diagnostics
Low-profile surface-mount design
Powered via the DM connection or local power pack (included)^[4,5]

For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia 8G Cable or third-party CAT5e (or better) UTP or STP. (Crestron legacy DM-CBL DigitalMedia Cable or DM-CBL-D DigitalMedia D Cable may also be used.) The maximum wire length for DM 8G+ is 330 ft (100 m) between devices. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
HDMI connections require an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
The RGB input can actually accept component, composite, and S-Video signals through an appropriate adapter (not included), or via direct interface to Crestron MPS Series products. However, input sync detection is not provided for composite or S-Video signal types through this connection.
To power the DM-TX-201-C using PoDM (Power over DigitalMedia) requires connection to a DM switcher or other equipment that has a PoDM PSE port. Any wiring that is connected to a PoDM PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
To power the DM-TX-201-C using HDBaseT PoE requires connection to a switcher or other equipment that has an HDBaseT PoE PSE port. Any wiring that is connected to an HDBaseT PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
USB-EXT-DM USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM spec sheet for more information.
The DM-TX-201-C has a USB device port, which does not supply USB power. When connected to a TT-100 series cable caddy (sold separately), the cable caddy must be powered separately through a connection to a Cresnet® network or power supply. Refer to the TT-100 spec sheet for more information.

Specs

Video
	Switcher	2×1 auto-switching, auto-detecting multi-format digital/analog inputs; Crestron QuickSwitch HD technology
	Input Signal Types	HDMI (DVI & Dual-Mode DisplayPort compatible^[2]), RGB/VGA (RGBHV, RGBS, RGsB); component (YPbPr); S-Video (Y/C); composite (NTSC, PAL)^[3]
	Output Signal Types	DM 8G+ & HDBaseT, HDMI (DVI compatible^[2])
	Resolutions, HDMI, Progressive	640×480@60Hz, 720×480@60Hz (480p), 720×576@50Hz (576p), 800×600@60Hz, 848×480@60Hz, 852×480@60Hz, 854×480@60Hz, 1024×768@60Hz, 1024×852@60Hz, 1024×1024@60Hz, 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1365×1024@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@24Hz (1080p24), 1920×1080@25Hz (1080p25), 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 1920×1200@60Hz, 2048×1080@24Hz, 2048×1152@60Hz, plus any other resolution allowed by HDMI up to 165 MHz pixel clock
	Resolutions, HDMI, Interlaced	720×480@30Hz (480i), 720×576@25Hz (576i), 1920×1080@25Hz (1080i25), 1920×1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165 MHz pixel clock
	Resolutions, RGB	640×480@60Hz, 720×480@60Hz (480p), 720×576@50Hz (576p), 800×600@60Hz, 848×480@60Hz, 1024×768@60Hz, 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 1920×1200@60Hz, 2048×1152@60Hz
	Resolutions, Component^[3]	480i, 576i, 480p, 576p, 720p50, 720p60, 1080p24, 1080i25 (1125 lines), 1080i30, 1080p30, 1080p50 (1125 lines), 1080p60
	Resolutions, Composite & S-Video^[3]	480i, 576i
	Analog-To-Digital Conversion	10-bit 165 MHz per each of 3 channels
Audio
	Switcher	2×1 with auto-detecting digital/analog inputs and analog audio breakaway
	Input Signal Types	HDMI (Dual-Mode DisplayPort compatible^[2]), analog stereo
	Output Signal Types	DM 8G+ & HDBaseT, HDMI
	Digital Formats	Dolby Digital®, Dolby Digital EX, DTS®, DTS-ES, DTS 96/24, LPCM up to 8 channels
	Analog Formats	Stereo 2-channel
	Analog-To-Digital Conversion	24-bit 48 kHz
	Analog Performance	Frequency Response: 20 Hz to 20 kHz ±0.75 dB; S/N Ratio: >90 dB, 20 Hz to 20 kHz A-weighted; THD+N: <0.05% @ 1 kHz; Stereo Separation: >90 dB
Communications
	Ethernet	10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
	USB	Supports signal extension of USB HID class devices, expandable to support virtually any USB 1.1 or 2.0 device using Crestron USB-EXT-DM USB over Ethernet Extenders^[6]; supports a TT-100 series cable caddy^[7]
	DigitalMedia	DM 8G+, HDCP, EDID, CEC, PoDM, Ethernet
	HDBaseT	HDCP, EDID, PoE, Ethernet
	HDMI	HDCP, EDID, CEC
	NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system
Connectors
	LAN	(1) 8-pin RJ45 female, shielded; 10Base-T/100Base-TX Ethernet port
	DM OUT	(1) 8-pin RJ45 female, shielded; DM 8G+ output, HDBaseT compliant; PoDM PD port (HDBaseT PoE compatible)^[4,5]; Connects to the DM 8G+ input of a DM switcher, receiver/room controller, or other DM device, or to an HDBaseT device, via CAT5e or Crestron DM-CBL-8G cable^[1]
	HDMI OUT	(1) 19-pin Type A HDMI female; HDMI digital video/audio output (DVI compatible^[2])
	PWR 24VDC 0.75A	(1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2407WU power pack included
	Ground	(1) 6-32 screw; Chassis ground lug
	USB HID	(1) USB Type B female; USB 2.0 device port for connection to the USB host interface of a computer or other USB HID-compliant host, or for connection of a Crestron TT-100 series device (Crestron Connect It)^[7]
	HDMI IN	(1) 19-pin Type A HDMI female; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible^[2])
	RGB IN	(1) HD15 female; Analog VGA/RGB/video input; Signal Types: VGA, RGB, component, S-Video, or composite^[3]; Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL; Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration; Input Impedance: 75 Ohms; Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr; Sync Input Level: 3 to 5 Vp-p; Sync Input Impedance: 1k Ohms
	AUDIO IN	(1) 3.5 mm TRS mini phone jack; Unbalanced stereo line-level audio input; Input Level: 2 Vrms maximum; Input Impedance: 10k Ohms
Controls & Indicators
	LAN	(2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
	DM OUT	(2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
	PWR	(1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or local power pack
	HDMI IN	(1) Green LED, indicates HDMI input is selected
	RGB IN	(1) Green LED, indicates RGB input is selected
	SETUP	(1) Red LED and (1) recessed pushbutton for Ethernet setup
	RESET	(1) Recessed pushbutton for hardware reset
Power
	Power Pack (included)	Input: 100-240 Volts AC, 50/60 Hz; Output: 0.75 Amps @ 24 Volts DC; Model: PW-2407WU
	Power over DM (PoDM)	IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment)^[4]
	Power over HDBaseT	IEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment)^[5]
Environmental
	Temperature	32° to 104° F (0° to 40° C)
	Humidity	10% to 90% RH (non-condensing)
	Heat Dissipation	30 BTU/hr
Enclosure
	Chassis	Metal, black finish, with (2) integral mounting flanges, vented sides
	Mounting	Freestanding, surface mount, or attach to a single rack rail
Dimensions
	Height	6.47 in (165 mm)
	Width	7.36 in (187 mm)
	Depth	1.24 in (32 mm)
Weight
	25.4 oz (721 g)

For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia 8G Cable or third-party CAT5e (or better) UTP or STP. (Crestron legacy DM-CBL DigitalMedia Cable or DM-CBL-D DigitalMedia D Cable may also be used.) The maximum wire length for DM 8G+ is 330 ft (100 m) between devices. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
HDMI connections require an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
The RGB input can actually accept component, composite, and S-Video signals through an appropriate adapter (not included), or via direct interface to Crestron MPS Series products. However, input sync detection is not provided for composite or S-Video signal types through this connection.
To power the DM-TX-201-C using PoDM (Power over DigitalMedia) requires connection to a DM switcher or other equipment that has a PoDM PSE port. Any wiring that is connected to a PoDM PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
To power the DM-TX-201-C using HDBaseT PoE requires connection to a switcher or other equipment that has an HDBaseT PoE PSE port. Any wiring that is connected to an HDBaseT PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
USB-EXT-DM USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM spec sheet for more information.
The DM-TX-201-C has a USB device port, which does not supply USB power. When connected to a TT-100 series cable caddy (sold separately), the cable caddy must be powered separately through a connection to a Cresnet® network or power supply. Refer to the TT-100 spec sheet for more information.
