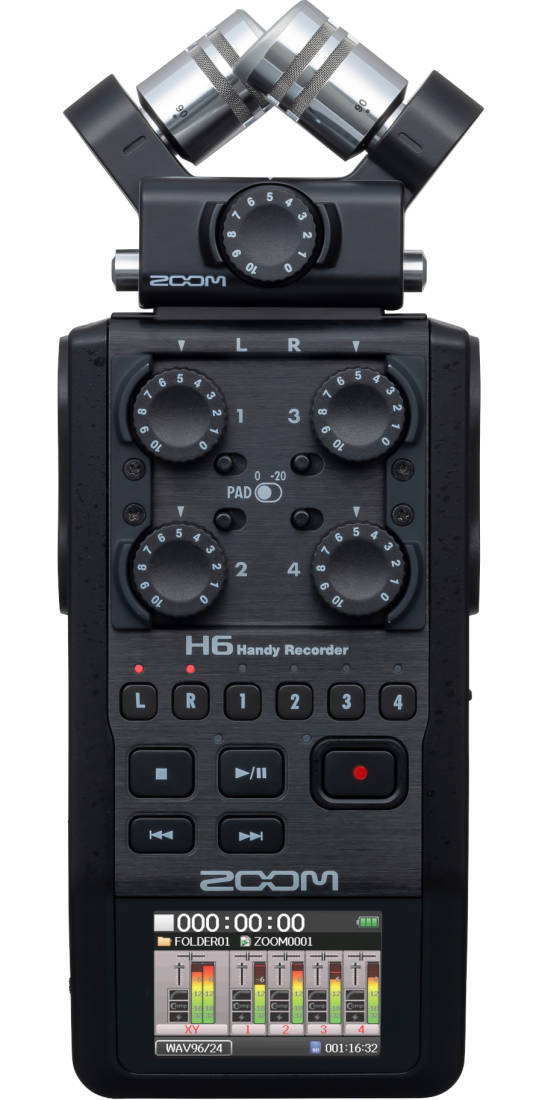

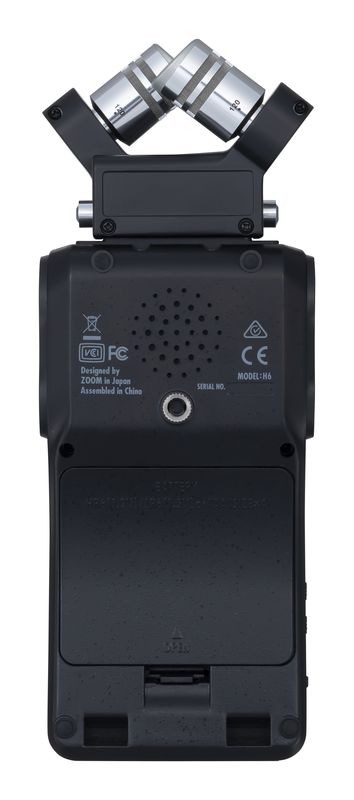

Zoom H6 6-Input/6-Track Handy Recorder

Zoom H6 6-Input/6-Track Handy Recorder

Model: AUZOH6

Product Highlights:

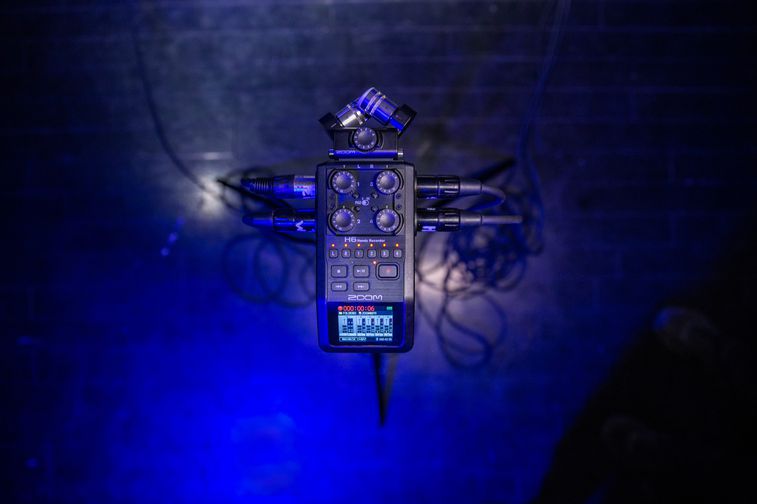

H6 Black – The Recorder That Does It All

The H6 is the ultimate portable recorder. With its advanced preamps and interchangeable capsules, the H6 delivers unmatched versatility and award-winning quality. The durable, rugged exterior and ability to record continuously for over 20 hours on four AA batteries means you can record almost anywhere, from live concert recording to podcasting, videography to studio recording and more. The H6’s USB port enables it to serve as a stereo or multi-channel audio interface for your computer or iPad.

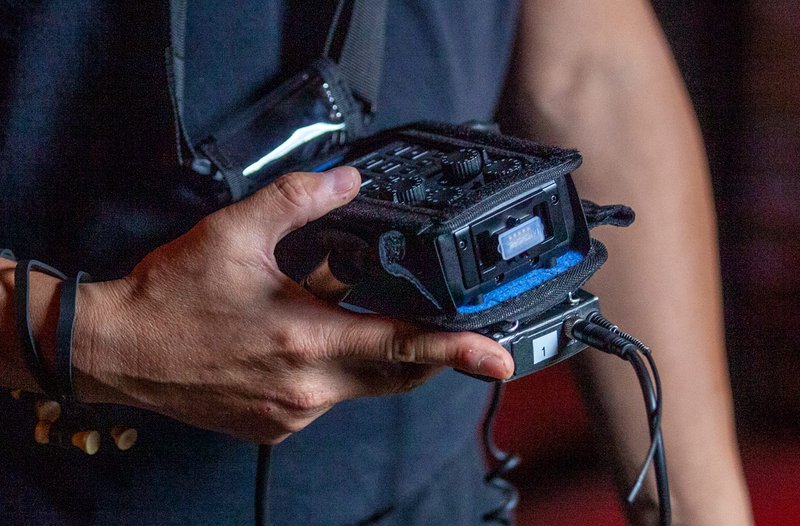

Sound for Every Scene
Featuring interchangeable mic capsules, four combo inputs and six tracks of quality recording, the H6 is ready to record on any set and in any scene the director throws at you. Whether you’re a musician creating your own unique masterpiece, or a sound designer looking for that perfect sound effect, the H6 will become your most trusted companion.

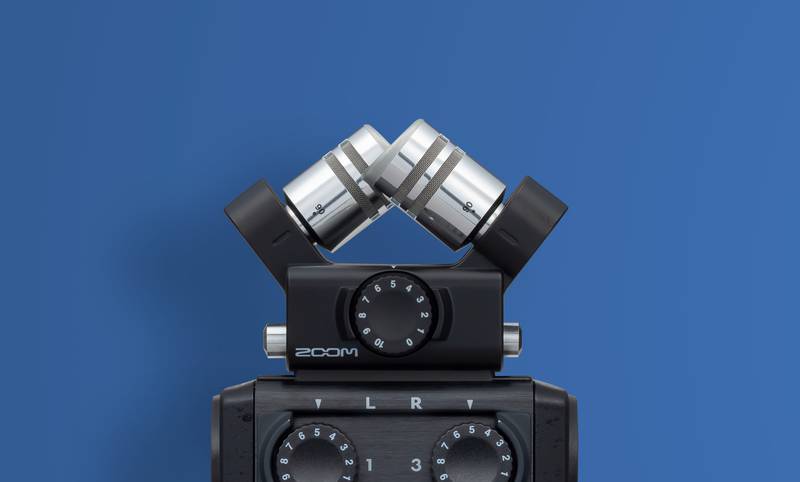

XYH-6 X/Y Capsule
The H6’s included X/Y capsule employs two angled high-quality unidirectional mics which are sensitive to signals coming from the front, but less to signals from the sides and rear. X/Y recording is optimum when you want to cover a wide area yet still capture a strong centre image, making it the perfect choice for all types of live stereo recording.

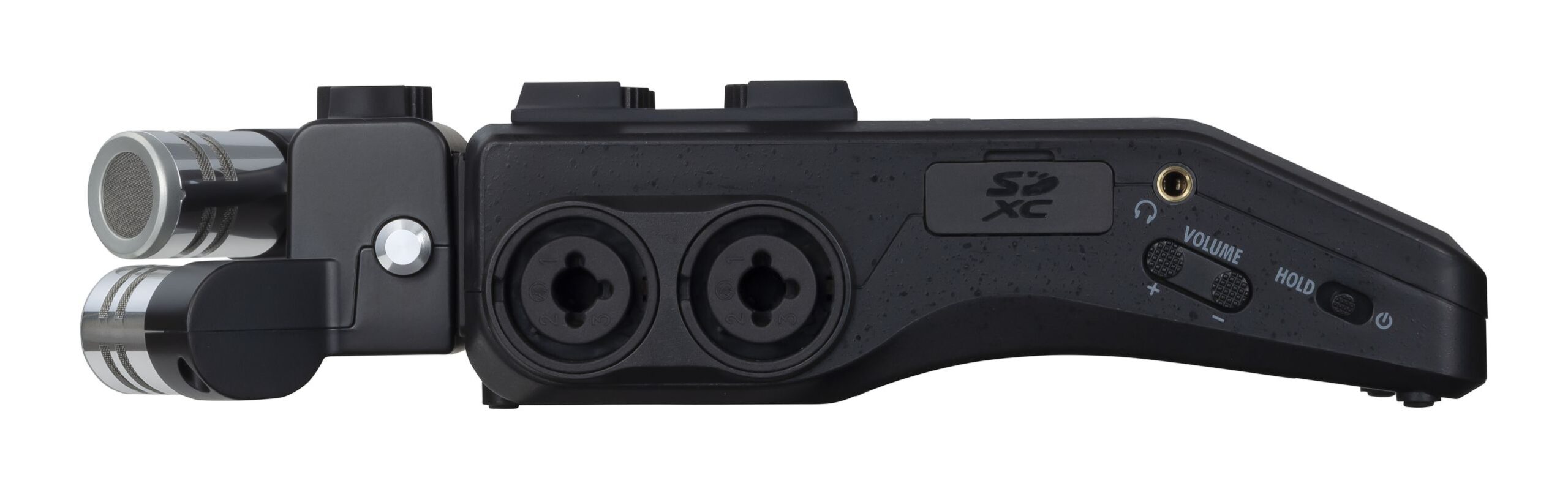

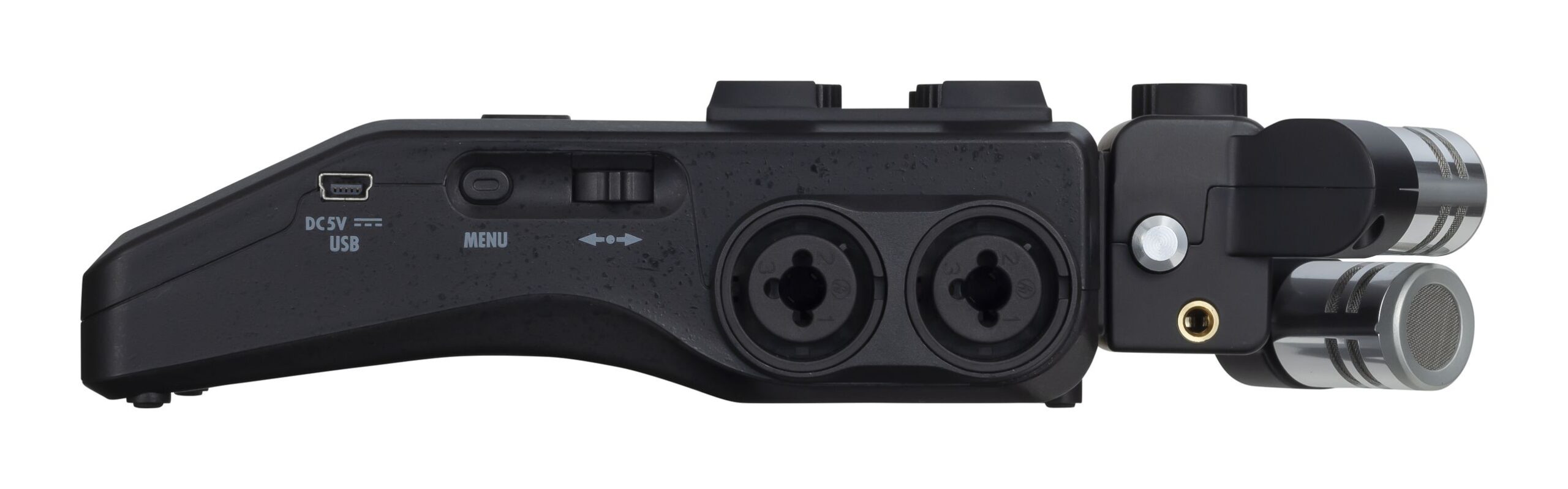

Ins & Outs
Ins

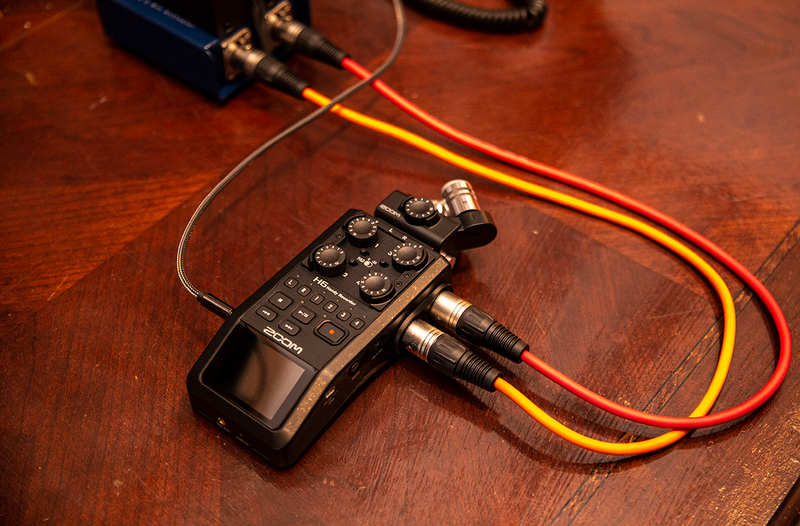

The H6 offers four XLR/TRS combo jacks with dedicated pad switches and gain control for distortion-free recording.
Outs
The H6 features two 1/8″ outputs, a stereo line out as well as a headphone out with dedicated volume control.

Product Description

Features
• Six-track simultaneous recording
• Four mic/line inputs with XLR/TRS combo connectors
• Gain control knobs and -20dB pads for each input
• Supplied XYH-6 X/Y capsule provides secondary input via a stereo 1/8″ Mic/Line In mini phone jack

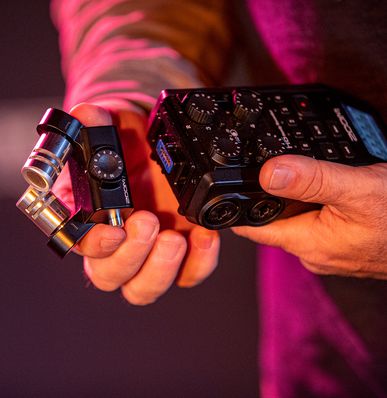

• Interchangeable input capsules
• Phantom power for all main inputs: +12/+24/+48V
• Large full-color, angled LCD display
• Records directly to SD, SDHC and SDXC cards up to 128GB
• Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
• Built-in effects, including low-cut filtering, compression, and limiting
• Multichannel and stereo USB audio interface for PC/Mac/iPad
• Accepts standard AA alkaline or NiMH rechargeable batteries
• Over 20 hours of operation with 4 AA alkaline batteries

Specs

Specifications
INPUTS
XYH-6 X/Y mic:
Mic type: Unidirectional
• Sensitivity: -41 dB, 1 kHz at 1 Pa
• Input gain: -∞ to 46.5 dB
• Max sound pressure input: 136 dB SPL
XYH-6 MIC/LINE IN:
• Connector: 1/8″ stereo mini jack
• Input level: – ∞ to 46.5 dB
• Input impedance: 2 k Ω
• Plug-in power: 2.5V supported
INPUTS 1 to 4:
• Mic Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)
• MicInput gain: (PAD OFF) -∞ to 55.5 dB
• MicInput gain: (PAD ON) -∞ to 35.5 dB
• MicInput impedance: 1.8kΩ or more
• MicMax input level: +22 dBu (PAD ON)
• MicPhantom power: +12V /+24V /+48V
(Phantom power can be turned on/off independently for Inputs 1 – 4)
• MicEquivalent Input Noise (EIN): -120 dBu or less
OUTPUTS
LINE OUT:
• Jack type: 1/8″ stereo mini jack
• Rated Output Level: -10 dBu when output load impedance is 10k Ω or more
PHONE OUT:
• Jack type: 1/8″ stereo mini jack
• Output Level: 20 mW +20 mW into 32 Ω load
Built-in speaker: 400mw 8 Ω mono speaker
RECORDING FORMATS
• WAV:
Sampling frequency: 44.1/48/96 kHz
Bit rate: 16/24
(Mono/Stereo, BWF-compliant)
Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup)
(Backup recording: -12dB lower than set L/R input gain
• MP3:
Sampling frequency: 44.1kHz
Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps
Maximum simultaneous recording tracks: 2
DISPLAY
LCD Screen: 2.0-inch full color LCD (320 x 240 pixels)
USB:
Mass Storage Class operation:
Class: USB2.0 High Speed
Audio Interface operation: Multi-track mode::
Class: USB2.0 High Speed
Inputs / Outputs: 6 / 2
Sampling frequency: 44.1/48kHz/96kHz
Bit rate: 16/24 bit
USB bus powered operation possible
BATTERY LIFE
Battery life (with alkaline battery, continuous recording): Over 20 hours
DIMENSIONS AND WEIGHT
H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g
XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g
