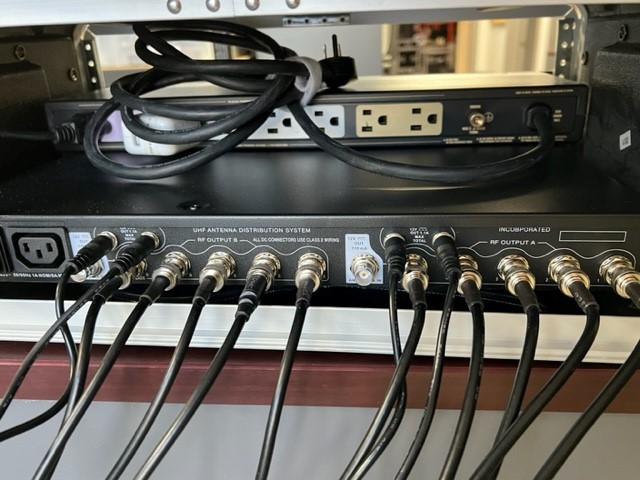

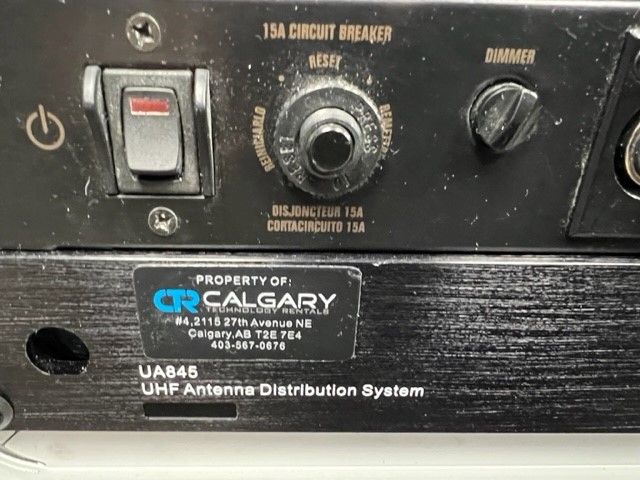

UA845 UWB antenna distribution system allows four receivers to use the same set of antennas. The cascade interface can be connected to a fifth receiver or a second UA845 UWB system. The power interface can be distributed to each receiver. The UA845 UWB amplifies the RF signal to compensate for the insertion loss due to the antenna input being divided into multiple outputs (490MHz to 960MHz).

• Available frequency range : 490-960MHz
• There are 5 frequency ranges available
• Antenna A and B input overload LED
• Five-way RF signal output
• Supports QLX-D ™, ULX, ULX-D, SLX and BLX (BLX4R only) Receiver
• Rack mounted
• Internal power supply
• 4 DC feed terminals for receiver (15V, max. 2.5A)
• DC output for antenna bias (12V, max. 300mA)
