Product Highlights:
The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker’s matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion. The result is a highly accurate and musical sound that maintains full signal integrity, even when pushed to high SPL.
CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.

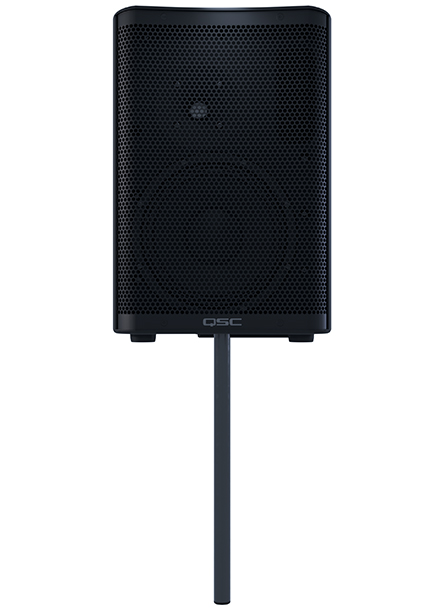

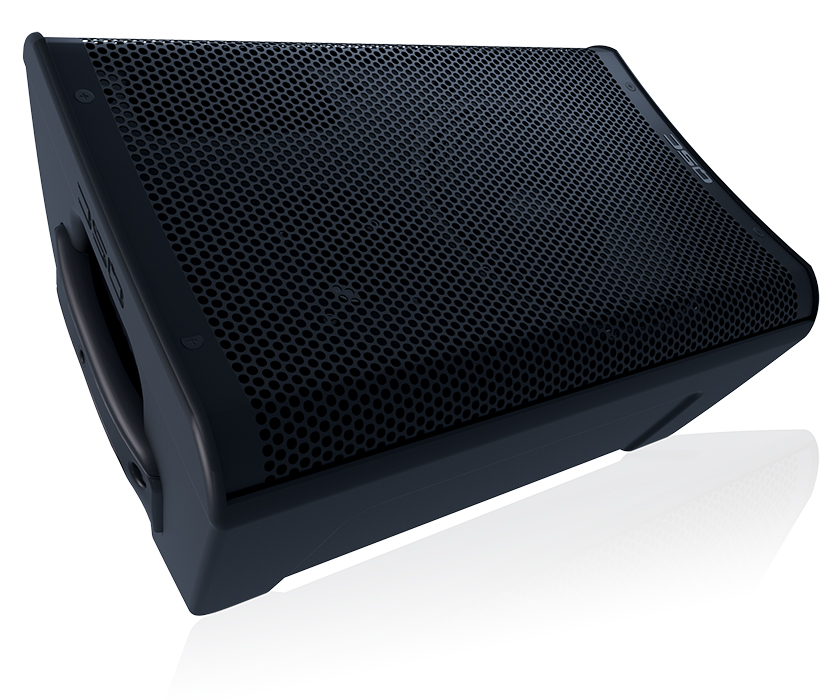

CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), or as floor monitors.
CP provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.
f
| Model | CP8 |
|---|---|
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 203 mm (8 in) , cone |
| HF Transducer: | 35.6 mm (1.4 in) compression driver |
| Frequency Response (-6 dB) | 56 – 20 kHz |
| Frequency Range (-10 dB) | 53 – 20 kHz |
| Nominal Coverage Angle: | 90° Axisymetric |
| Maximum Rated SPL1: | 124 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |
| Controls: | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED |

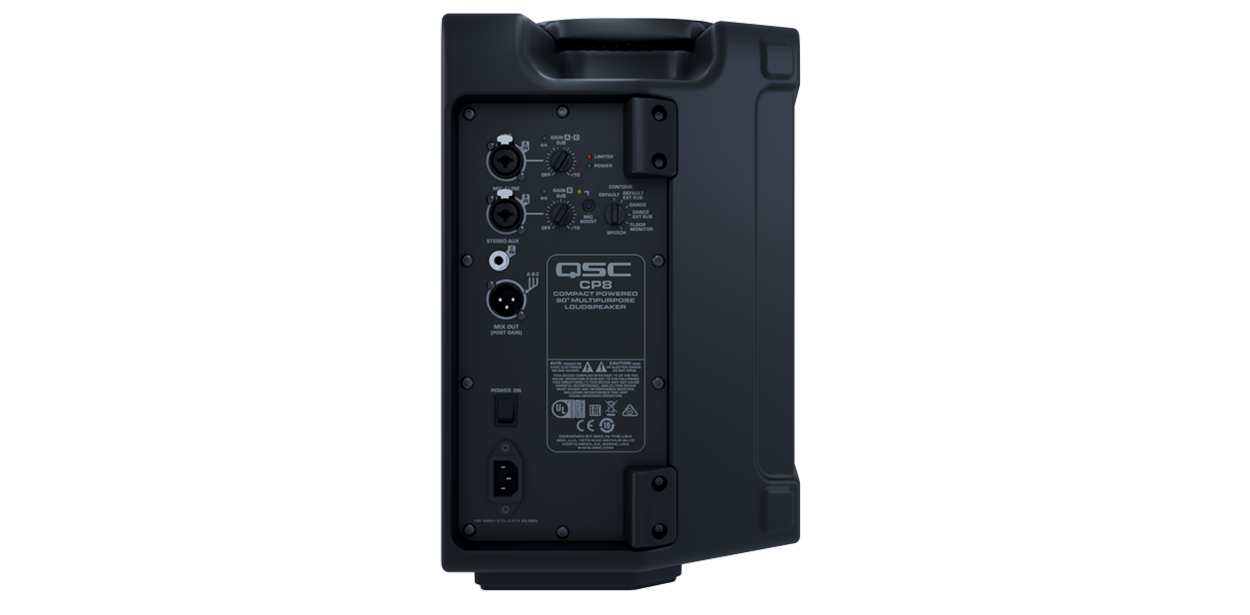

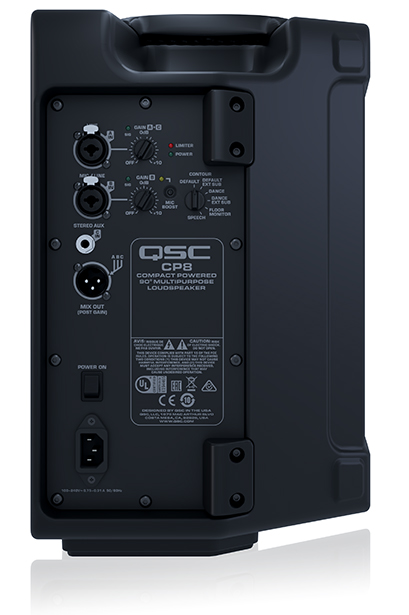

| Connectors: | 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption (1/8th Power): | 100 VAC, 0.75A – 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Speaker Dimensions (H×W×D): | 411 × 273 × 256 mm 16.2 × 10.7 × 10.1 in |
| Carton Dimensions (H×W×D): | 360 × 360 × 496 mm 14.2 × 14.2 × 19.5 in |
| Net Weight: | 9.5 kg / 21.0 lb |
| Shipping Weight: | 11.5 kg / 25.4 lb |
| Regulatory: | EMC, UL, CB |
