Optoma 5K Datasheet

Specs

OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Texas Instruments™ 0.67” WUXGA DMD
Color Wheel 4 segment RGBY
Native Resolution WUXGA
Maximum Resolution 4K UHD (3840 x 2160 @ 60Hz)
Brightness 5,000 ANSI lumens
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Displayable Colors 1.07 billion
Lamp Life and Type* Up to 30,000 hrs (Eco), 20,000 hrs (Bright)
Light Source Type* Laser phosphor
Projection Method 360, front, rear, ceiling mount, table top
Keystone Correction ±30° horizontal and vertical
Geometry Four corner adjustment
Lens Shift 8% vertical
Uniformity 80%
Offset 99%-107% ±5%
Aspect Ratio 16:10 (native), 16:9, 4:3 (compatible)
Throw Ratio 1.40-2.24:1
Projection Distance 3.28’- 32.8
Image Size 20.8” – 331.6”
Projection Lens F=2.5-3.26 f=20.91-32.62
Optical Zoom 1.6x
Digital Zoom 0.8 – 2.0x
Audio 2 x 10W (stereo)
Noise Level 36db (Normal) / 30db (Eco)
Remote Control Full size remote with laser pointer
360 degree and Portrait mode Yes
operation
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Supply AC input 100–240V, 50–60Hz, auto-switching
Power Consumption 353W ±15% (Full), 321W±15% (Eco)
High Altitude Operating temperature at sea level up to 10,000 feet =
104° F (max); Must manually switch to high altitude mode
from 5,000 feet and above (using OSD menu) to maintain
optimal functionality.
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+,
UXGA, HDTV(1080p), WUXGA
Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
4K UHD 2160p (24/50/60 Hz)
3D Compatibility†
Supports all HDMI 1.4a mandatory 3D formats (Frame
pack, side-by-side, top-bottom) and up converts frame
rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or
72 frames per eye). 3D glasses are needed and sold
separately. Refer to user manual for details.
Vertical Scan Rate 24 ~ 85 Hz
Horizontal Scan Rate 15.375 ~ 91.146 KHz

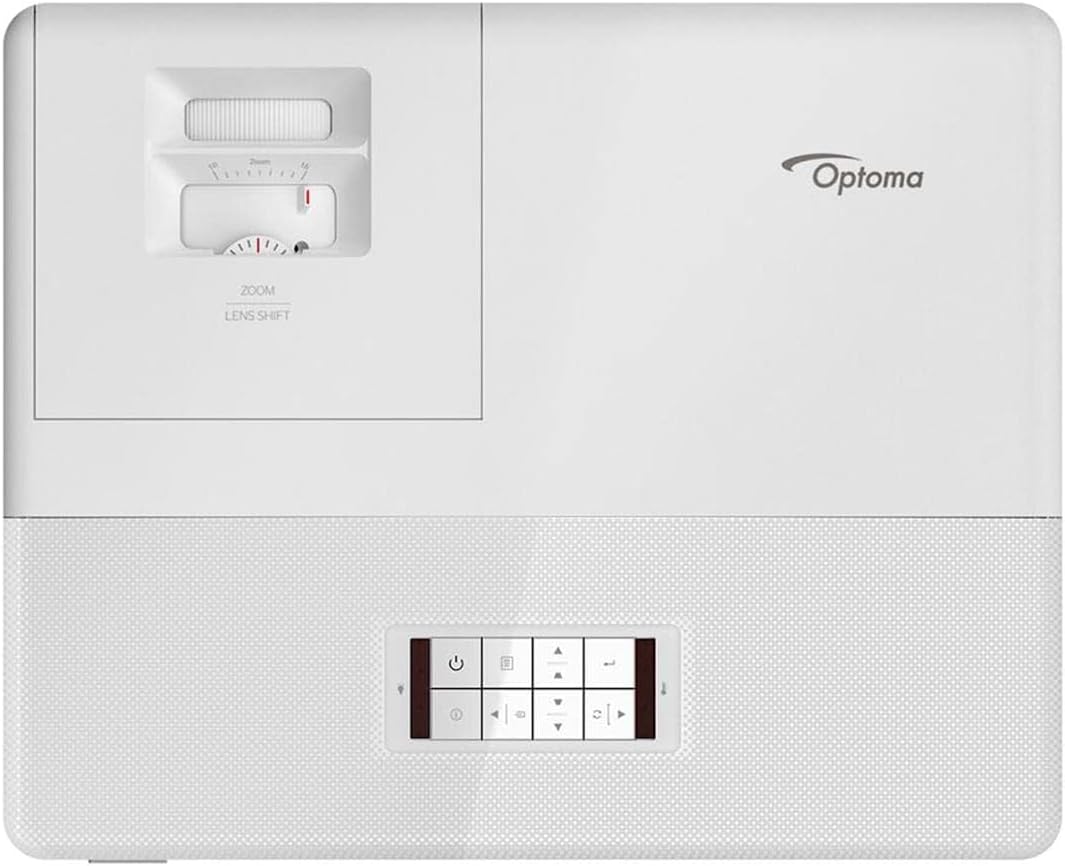

User Controls Graphic user interface and on-screen
menu in 27 languages

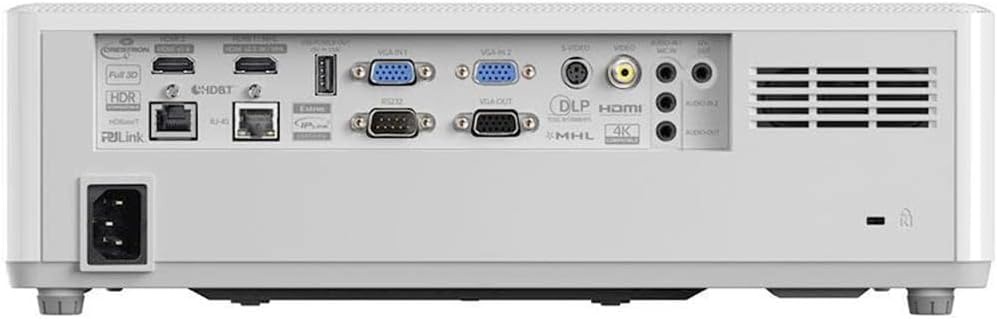

I/O Connection Ports 2x HDMI 1.4 (HDMI 2 MHL), 1x HDBaseT 1x composite, 2x
VGA, 1x S-video, 1x audio in,1x mic in, 1x USB-A (power),
1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger
Control 1x RJ-45, 1x RS-232C
Loop Through (Audio) Yes
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, password (OSD)
Weight 12.12 lbs
Dimensions (W x H x D) 14.7” x 4.6” x 11.9”
