PRX512M is the most compact and versatile speaker in the PRX500 Series. It has been designed to deliver the most performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. System Power Rating 500 W continuous, 1000 W peak.
The PRX512M is a self-powered, lightweight two-way multipurpose loudspeaker system. The PRX512M is comprised of a 262F 305 mm (12″) Differential Drive® woofer, a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 70° by 70° horn, all driven by a multichannel Crown International Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, crossover functionality, dynamic limiting and discrete component optimization.

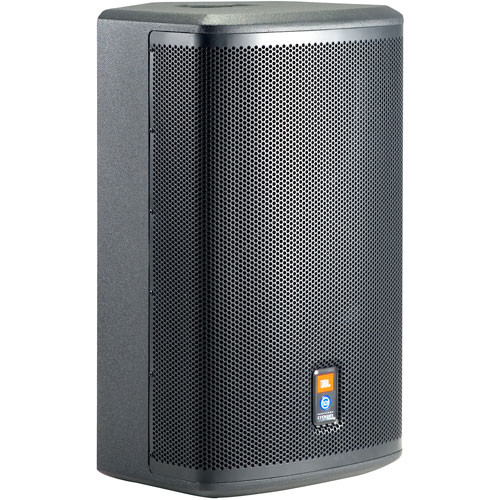

The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex™ finish. An integrated dual angle pole mount on the bottom enables easy deployment and aiming. The CNC-machined steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference.

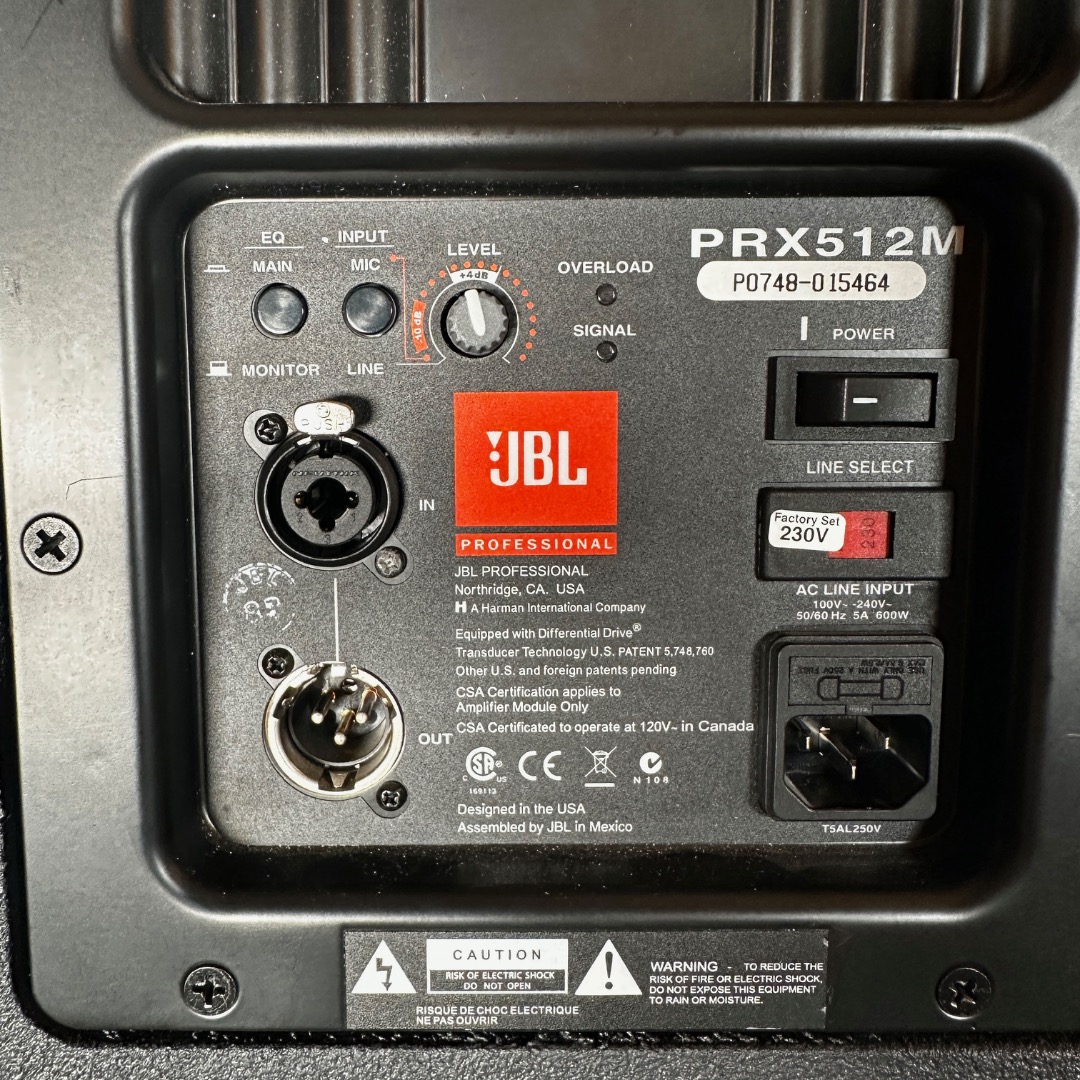

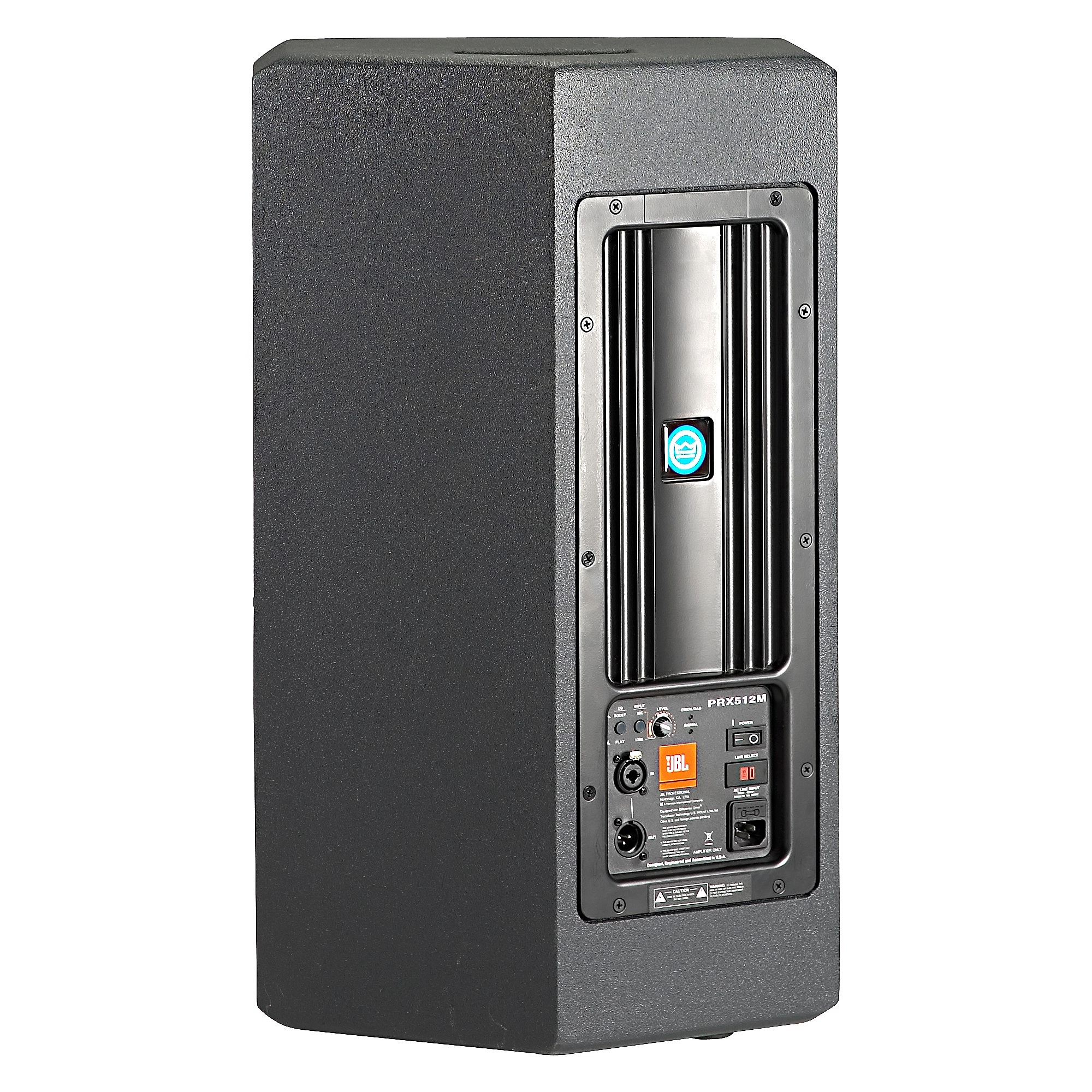

The grille is also lined with an acoustically transparent foam to provide additional driver protection. The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.
Features:

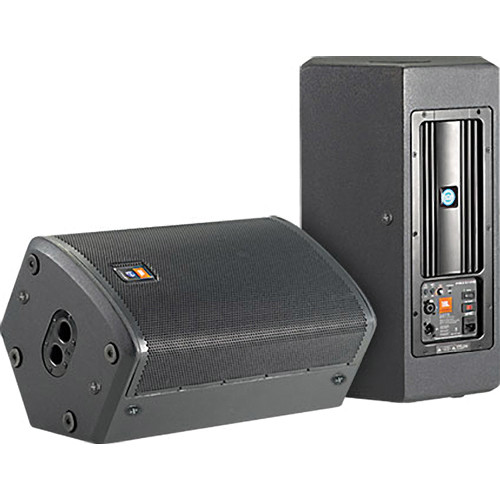

Dual angle enclosure for both front-ofhouse and floor monitor applications
Optimized EQ for monitor or front-ofhouse applications
JBL Differential Drive® woofer
1.5″ annual polymer diaphragm
compression driver
Class-D, Crown® digital amplifier:
lightweight, compact, multi channel,
heritage
DSP input section, crossover, dynamic
limiting, component optimization,
selectable system EQ
Professional XLR line and ¼”
Mic/Instrument inputs, with loop through.
Illuminated logo for clear Power-On
status
Dual angle pole mount socket
DuraFlex™ coated plywood construction
Preliminary Specifications:
System Type: Self powered 12″, two-way, bass-reflex,
Frequency Range (-10 dB): 46 Hz – 20 kHz (EQ in main position)
60 Hz – 20 kHz (EQ in monitor position)
Frequency Response (±3 dB): 76 Hz – 20 kHz (EQ in main position)
90 Hz – 20 kHz (EQ in monitor position)
Coverage Pattern: 70° x 70° nominal
Directivity Index (DI): 10.2 dB
Directivity Factor (Q): 10.8
Crossover Modes: DSP controlled 48 dB filter slope
Crossover Frequency: 1.6 kHz
System Power Rating 500 W continuous, 1000 W peak
LF Power amp Class-D, 400 Watt (continuous) at driver impedance
HF Power amp Class-D, 100 Watt (continuous) at driver impedance
Distortion: Less than 0.1% at rated power
Maximum Peak Output1
: 133 dB SPL
Signal indicators: Overload: Red LED indicates input overload condition
Signal: Green LED indicates signal presents
Input sensitivity: Mic position: –25 dBu to 0 dBu
Line position: +28 dBu to +10 dBu
Input Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)
EQ: Presets for Main and Monitor position
LF Driver: 1 x JBL 262F 380 mm (12 in) Differential Drive® woofer
HF Driver: 1 x JBL 2408F 37.5 mm (1.5 in) annular polymer diaphragm,
neodymium compression driver
Enclosure: Trapezoidal, 18 mm, plywood
Suspension / Mounting: Dual 36 mm pole socket
Transport: Integrated handle with backing cup
Finish: Anthracite DuraFlex™ finish
Grille: Powder coated, Anthracite black, 18 gauge perforated steel
with acoustically transparent black foam backing.
Input Connectors: Balanced XLR / ¼ inch combo jack with XLR loop through,
Dimensions (H x W x D): 650 mm x 380 mm x 350 mm
(25.5 in x 15 in x 14 in)
Net Weight: 18 kg (40 lb)
1. Maximum Peak output measured with IEC pink noise at 1 meter in front of speaker baffle under free space
conditions. Measurement instrument set to peak hold. Speaker muted and released at full power, recording maximum
peak level.
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this
reason, any current JBL product may differ in some respect from its published description, but will always equal or
exceed the original design specifications unless otherwise stated.
JBL_PRX512M.v6 Data Sheet
