JBL EON ONE Linear Array PA System

JBL EON ONE Linear Array PA System

Model: AUJBLA

Product Highlights:

The EON ONE linear-array P.A. system brings legendary JBL Professional audio to your next performance, conference or meeting. Your entire audience will experience powerful, accurate sound, thanks to the patent-pending speaker configuration and unobstructed 10” bass reflex subwoofer. The built-in 6-channel mixer with EQ makes it easy get great sound instantly—simply connect your microphones and instruments, or stream Bluetooth® audio from your mobile device. With a true all-in-one design that you can carry with one hand, EON ONE is effortless to set up and transport.

Product Description

Features

Proven JBL Sound Quality

EON ONE brings unmatched JBL performance, with over 70 years of transducer building experience, to your next gig, event or presentation.

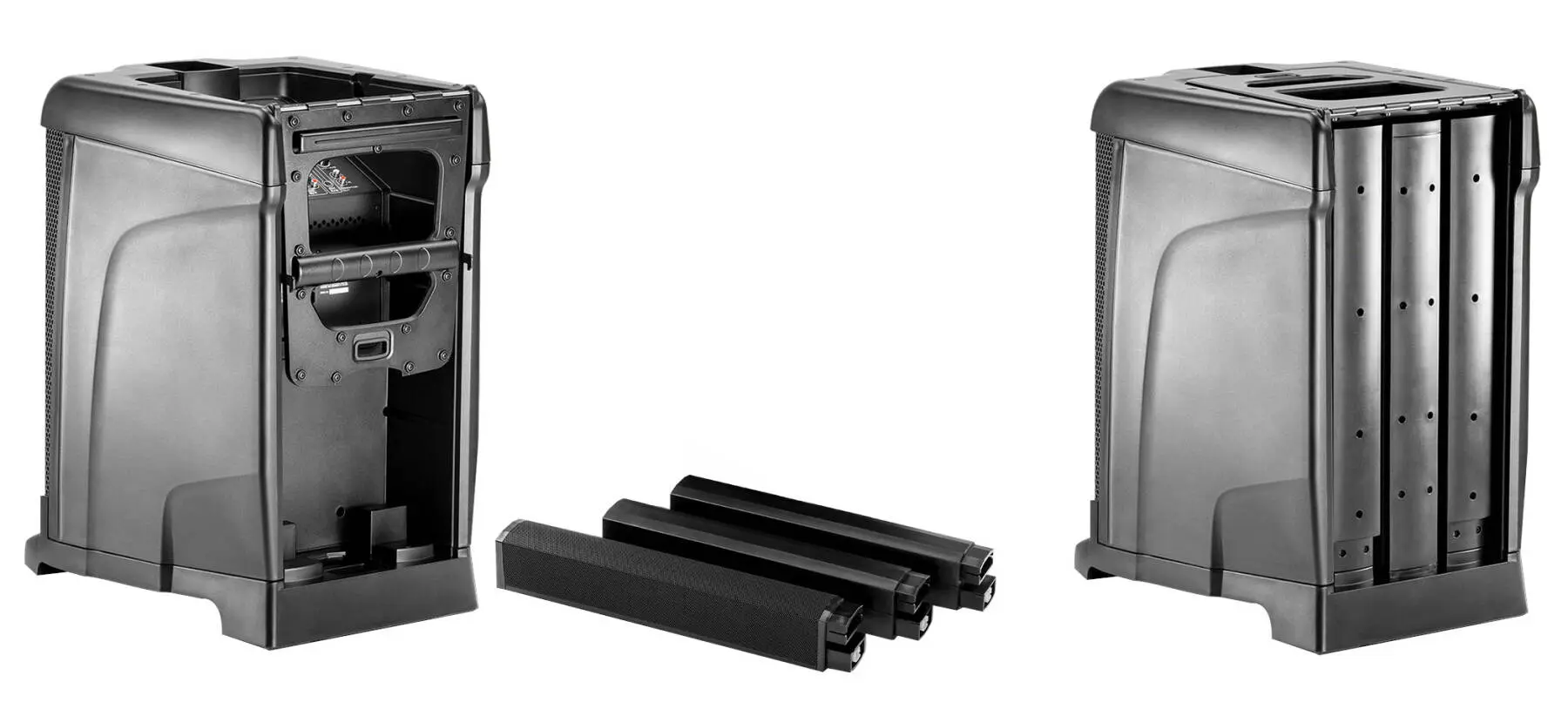

Patent-pending linear array speaker configuration

Similar to the technology that goes into our massive concert speaker arrays, JBL Directivity Control Geometry optimizes the spacing and angle of each driver to ensure extraordinary sound quality and consistent directionality.

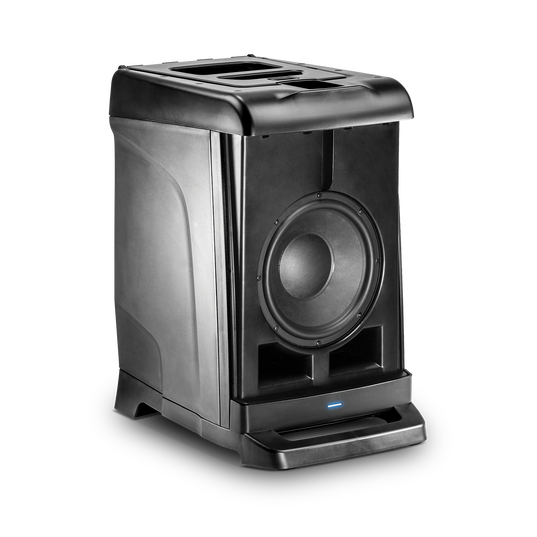

Unobstructed 10″ bass-reflex subwoofer

EON ONE sports an unobstructed 10″ subwoofer – the largest in its class- with bass-reflex technology so the audience feels your bass tones with full force.

Specs

System System Type: Portable Line Array with powered mixer
Maximum SPL Output: 118 dB peak system output (pink noise)
Frequency Range (-10dB): 37.5Hz – 18.5kHz
Frequency Response (-3dB): 45Hz – 18kHz
AC input : 100 – 120 VAC, 220-240 VAC 50/60 Hz
Amplifier Design: Class D
System Power Rating: 250 Watts LF, 130 Watts HF

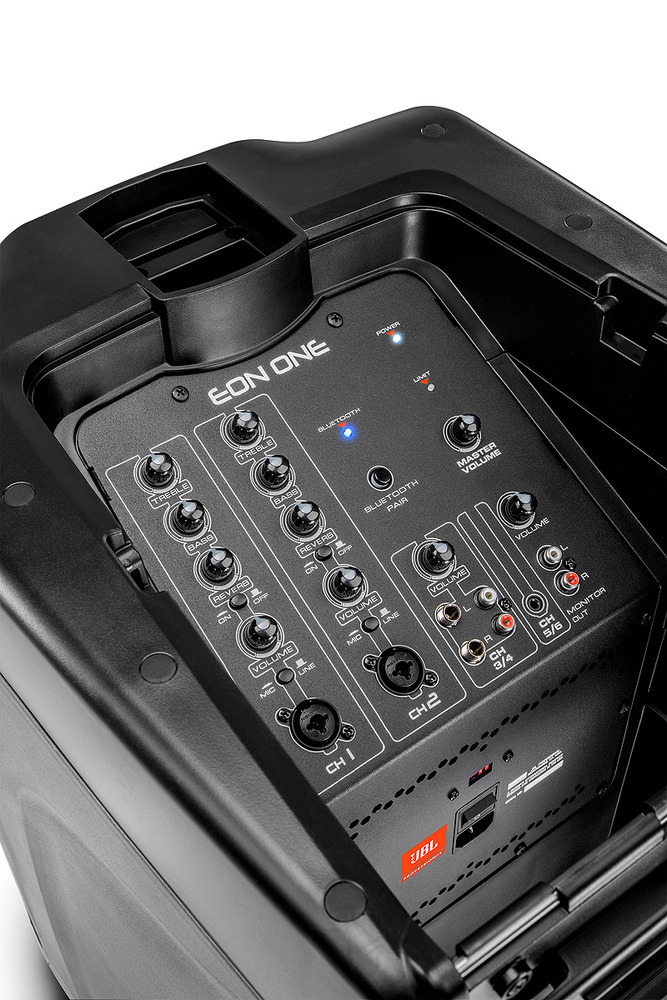

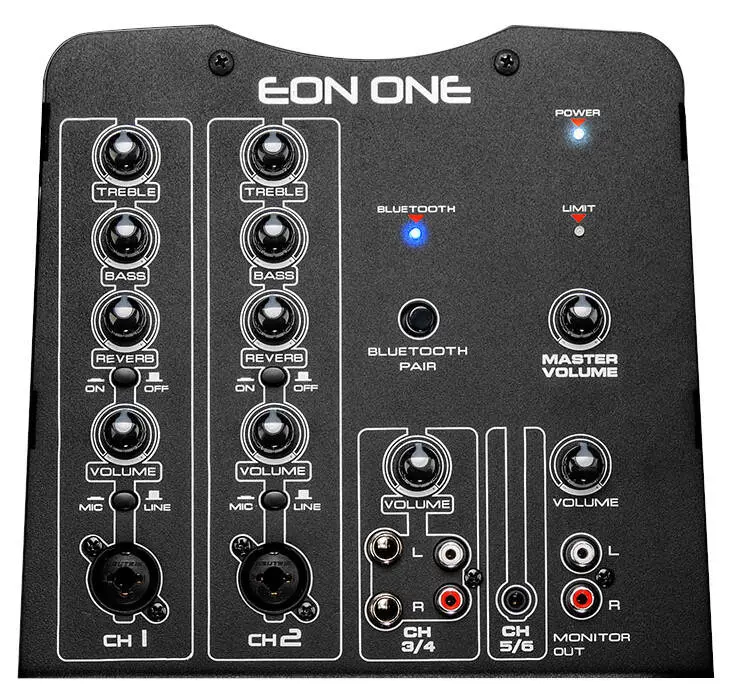

Mixer Input Connectors: 6 inputs (2 Mono Mic/Line, 2 x Stereo)
Channels: 1-2 are XLR / 1/4″ jack combo connectors
(XLR is a mic level input, 1/4″ is a line level input)
3-4, one pair of 1/4″ balanced TRS jacks (stereo), and a pair of RCA jacks (stereo)
5-6 is a 3.5 mm stereo jack
Input Impedance: Ch 1-2 Combo: XLR 40 K Ohms Balanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Output Connectors: Monitor outputs: one pair of RCA jacks (stereo)
Signal Indicators: Limit: Yellow LED indicates limiter active condition
EQ: Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter: On Board DSP Limiting and Tuning
Speaker LF Driver: 1 x 254mm (10 in) woofer
HF Driver: 6 x 2″ drivers
Coverage Pattern: 100º x 50º nominal
Enclosure: Polypropylene
Grille: Powder coated perforated steel
Dimensions (H x W x D)
Unit Dimensions:
Packaged Dimensions:
23.3″ x 14.5″ x 17″ (593mm x 369mm x 434mm)
30.9″ x 15.6″ x 22.5″ (769mm x 397mm x 572mm)
Net Weight of System: 18.51 kg (40.8 lbs)
