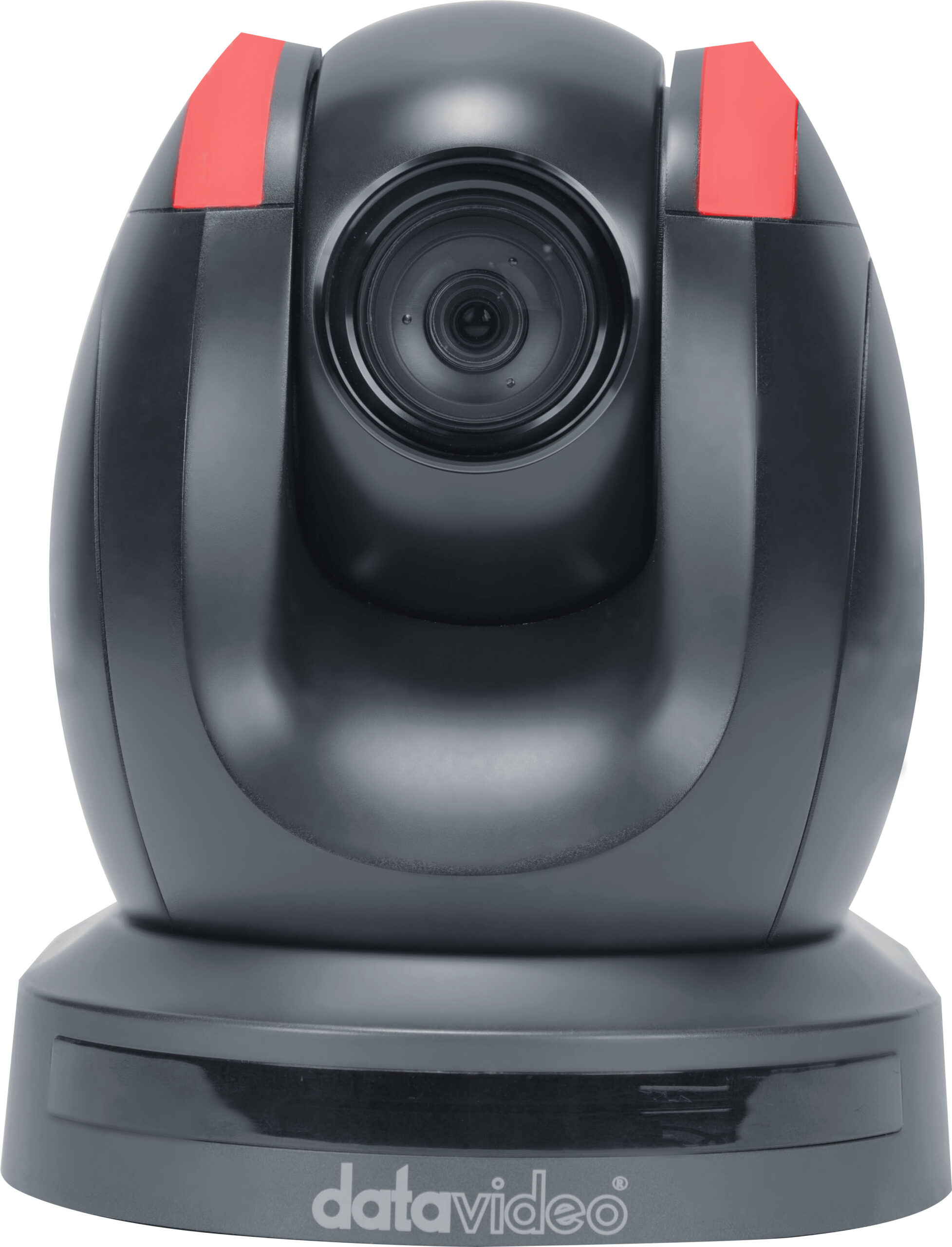

DataVideo PTC-150 HD/SD PTZ Camera

DataVideo PTC-150 HD/SD PTZ Camera

Model: VIDVCA

Product Highlights:

The black PTC-150 HD/SD PTZ Video Camera from Datavideo captures HD video at up to 1920x1080p resolution, and features wide dynamic range with backlight compensation. It can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control.

The PTC-150 features motorized 30x optical zoom capability. Its image-mirror and image-rotation functions allow you to electronically adjust the image to help compensate for mounting limitations based on your location. There are 50 programmable position presets including pan, tilt, and zoom positions; these allow the camera to move quickly between predetermined camera positions using the remote, or an optional PTZ controller.

For multi-camera shoots, the built-in tally light can identify when the camera is active. The camera features a built-in IR cut filter in the image path for low-light shooting, and then returns for daytime shooting.

SETUP INSTRUCTIONS:

INDOOR USE ONLY (please check with CTR as to exceptions)

Product Description

30x optical zoom
Position coordinates report in real time per frame
Dehazing technology allows foggy or hazy images to be clear and sharp
Simultaneous HD-SDI, CVBS, and HDMI video output
Supports DVIP control protocol (Firmware update required)
Built-in tally LED
Digital Noise Reduction Function (DNR) reduces the noise and enables clearer image under low light conditions

Specs

General
Video Outputs	1 x HD/SD-SDI 1 x CVBS 1 x HDMI (V1.3)
Output Level	1 V p-p, 75 ohms

Control
Ports	1 x RJ-45, RS-422 1 x RJ-45, DVIP
Protocol	VISCA / DVIP (selectable)
Baud Rate	38,400 bps (or more)
F/W Upgrade	Via USB port on rear using USB dongle (not included)
IR	2 x IR receivers in front of the camera

Video Capture
Image Pickup Element	1/2.8″ type progressive scan Sony CMOS sensor
Effective Picture Elements	Approx. 2.14 MP
Resolution	HD / FHD / SD (CVBS only)
Supported Formats	HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p CVBS: 480i/576i
S/N Ratio	50 dB
Minimum Illumination	Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain) Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
Electric Shutter	1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec
Electronic Sensitivity UP	0 – 128x
Gamma	Off, AUTO, Smart-1, Smart-2, Smart-3
Iris Control	Auto / manual
Digital Noise Reduction (DNR)	On / off
On Screen Display	English
White Balance	AWC / ATW / MWB (adjustable R and B signals) / outdoor / indoor / fluorescent
AGC (Automatic Gain Control)	Gain Adjustment Table: Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF
Mirror	Of / horizontal / vertical / H+V
Switches	Fog Correction: On / off Backlight Compensation Function: On / Off Camera Title (OSD): On / off, 16 alphanumeric characters (Camera ID: 16) Color Bar: On / off (full bar)
Focus Modes	Auto / manual / one-push / STOP-AF
Day & Night	Auto / color / BW (using IR)

Lens
Type	30x optical zoom
Focal Length	4.3 to 94.6 mm, f/1.6 to f/4.7
Angle of View	Horizontal: 63.7° to 2.3°

PTZ Control
Pan Range	270°
Tilt Range	+90° to -20°
Pan/Tilt Speed	Manual: 1 – 150°/sec Swing: 1 – 150°/sec
Initializing Time	30 sec
Preset	50 positions
Scan	8 groups
Camera ID	1 – 7
Operating Noise	Tilt: ≤25 dB Pan: ≤25 dB
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity	20 – 90%, non-condensing
Certifications	CE / FCC Class A
Dimensions (W × H × D)	6.8 x 7.4 x 8.6″ (173 x 189 x 218 mm)
Weight	6.1 lb (2.8 kg)
