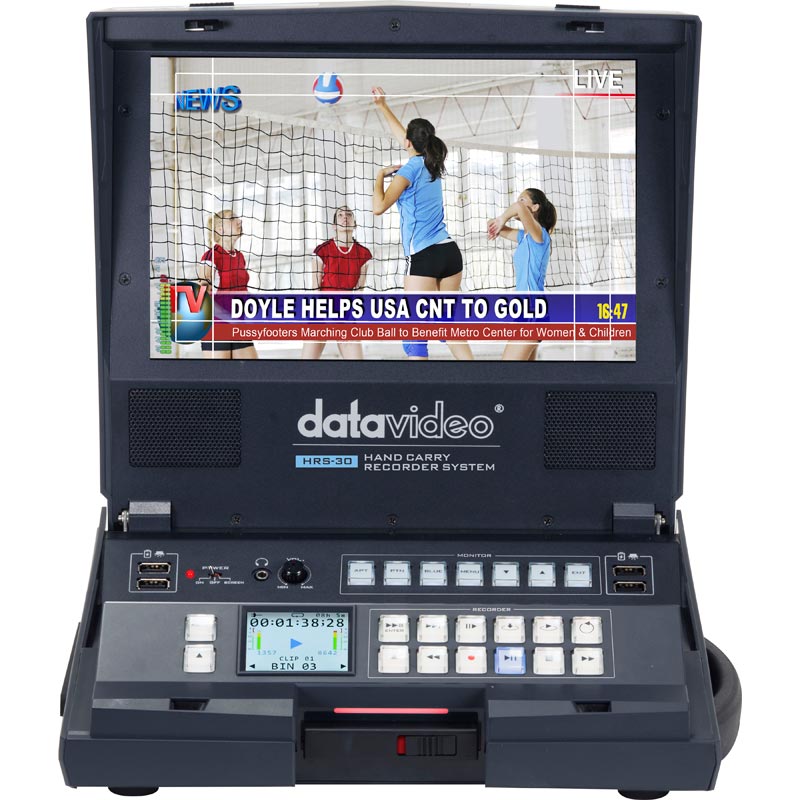

Datavideo HRS-30 Hand Carry Recorder

Model: VIDVRE

Product Highlights:

Building an SD/HD-SDI recorder with a physical control panel, and a monitor into a portable hand carried clamshell design; the Datavideo HRS-30 Portable Hand Carried SD/HD-SDI Recorder with Built-in 10.1″ Monitor is suitable for use on locations for off camera recording of SD/HD-SDI signals. The integrated physical keyboard provides push-button navigation and playback of your video clips with familiar VTR style control. It features a small LCD screen for clip information, so your footage can play back on the 10.1″ monitor screen.

  • The 10.1″ TFT LCD is built-into the cover of the HRS-30, so there is no need to cable the monitor, just open the cover and power up.
  • The unit accepts SD/HD-SDI signals through its input, and provides a loop through SDI output, an HDMI and SDI output for playback from the unit.
  • Recording the video image using MPEG 2 codec with 4:2:2 color sampling provides a good balance of quality versus file size, and you can choose to record your footage as either MXF or MOV files.
  • The unit records to a 1TB SSD that is mounted in the removable drive rack.
  • Power for the HRS-30 is either through use of an optional V-Mount battery attached to the built-in V-Mount in the unit’s cover, or by using the included power supply, which features a locking power connector.



Key Features
  • 1280 x 800 Screen Resolution
  • Records 1080p24, 720p60, NTSC & PAL
  • Records MPEG 2 with 4:2:2 Color Sampling
  • MXF OP1A, MOV File Encoding
  • SDI Input, SDI & HDMI Output
  • SDI Loop Through Output
  • Records to a 1TB SSD
  • Removable Drive Rack Included
  • V-Mount Battery Plate Built Into Lid
  • 12 VDC Coaxial Power Input

Product Description

Monitor:
Internal color bar
Blue only
Audio indicator
Safe area
Time code display
Color temperature adjustment
NTSC/PAL auto switching

USB Ports:
The HRS-30 incorporates 4 type A USB ports that can power an optional LED light, and each port provides 500 mA at 5 volts, which is extremely useful for charging cell phones.

Keyboard:
Physical keyboard buttons allow you to navigate the menu, adjust settings, and control playback.

Specs

Datavideo HRS-30 Specs

Monitor
Panel: 10.1″ TFT LCD
Active Area (WxH): 8.5 x 5.3″ / 216.96 x 135.60 mm
Resolution: 1280 x 800
Pixel Dot Pitch: 0.0565 x 0.1695 mm (W x H)
Recorder
Video Resolution Supported: 1080p: 23.98/24
1080i: 50/59.94/60
720p: 50/59.94/60p
476i
576i
Recording Formats: MXF/OP1A
MOV
Video Recording MPEG 2 Long GOP HD

10 Mbps 4:2:0 1440×1080/1280×720
25 Mbps 4:2:0 1440×1080/1280×720
35 Mbps 4:2:2 1920×1080/1280×720
50 Mbps 4:2:2 1920×1080/1280×720
65 Mbps 4:2:2 1920×1080/1280×720
120 Mbps 4:2:2 1920×1080/1280×720

MPEG2 I-Frame Only HD

100 Mbps 4:2:2 1920×1080/1280×720
125 Mbps 4:2:2 1920×1080/1280×720

MPEG 2 Long GOP SD

8 Mbps 4:2:0 720×480/720×576
15 Mbps 4:2:2 720×480/720×576
30 Mbps 4:2:2 720×480/720×576
50 Mbps 4:2:2 720×480/720×576

MPEG 2 I-Frame Only SD

25 Mbps 4:2:2 720×480/720×576
50 Mbps 4:2:2 720×480/720×576

Audio Recording Format: Uncompressed PCM
External Sync: Black Burst
Tri-level
Loop through
Interface
Inputs/Outputs Input
SDI: 1 x BNC

Output:
SDI: 2 x BNC (one loop through)
HDMI: 1 x type A

Audio Output:
Headphone: 1 x 3.5 mm stereo jack
Speakers: 2 x 3 W

Embedded Audio
SDI: 8 channels
HDMI: 8 channels

Timecode
Input: 1 x BNC
Output: 1 x BNC

Sync Reference
Input: 1 x BNC
Output: 1 x BNC

Firmware Upgrade
1 x mini-USB

Service
1 x RJ-45
Power Input
1 x 12 VDC coaxial locking plug (2.1 x 5.5 13.8 mm)
1 x V-mount

Output
4 x USB type A

Requirements
12 VDC: Via coaxial connector
14.4 VDC: Via V-mount
