Specs

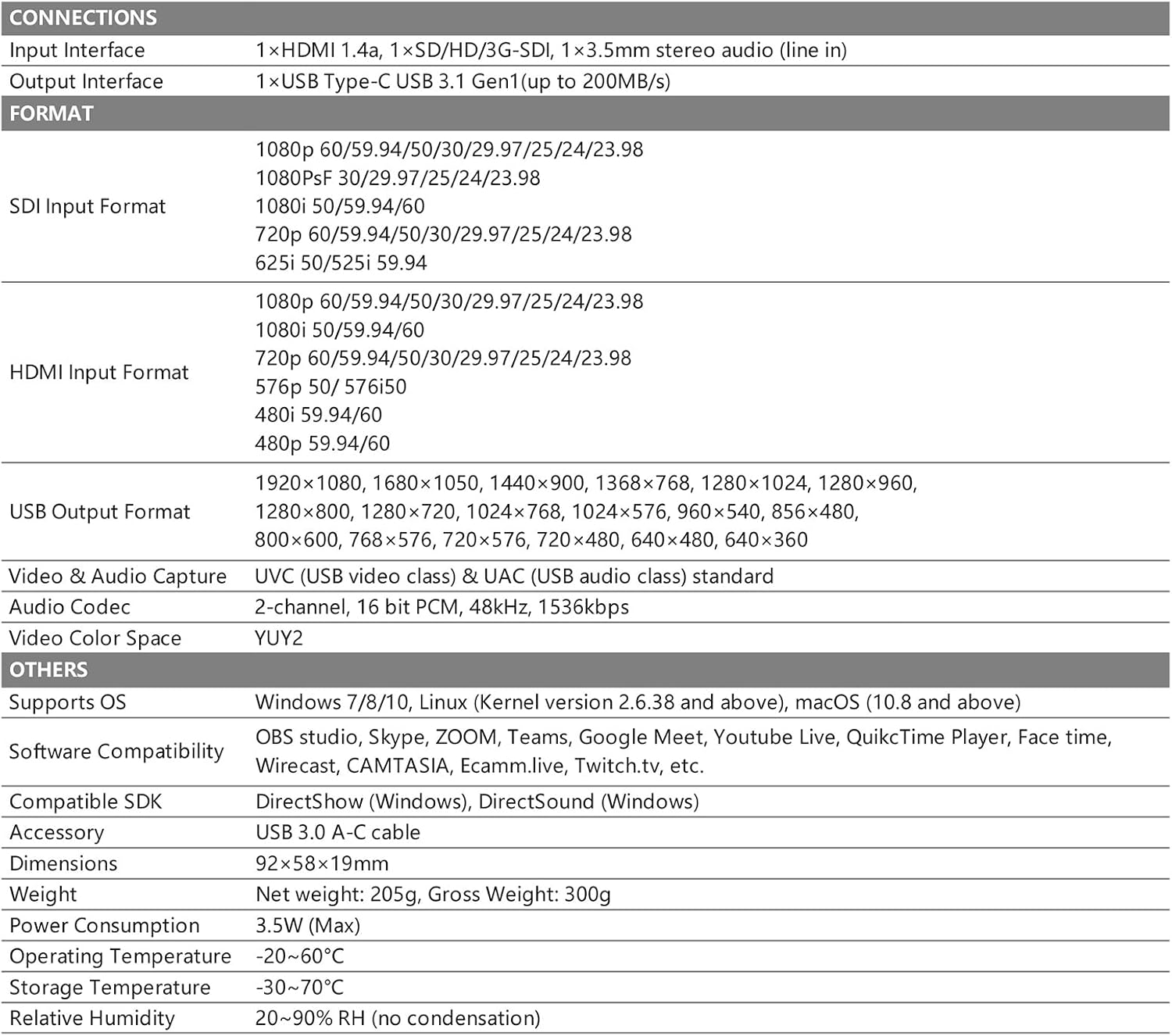

CONNECTIONS:

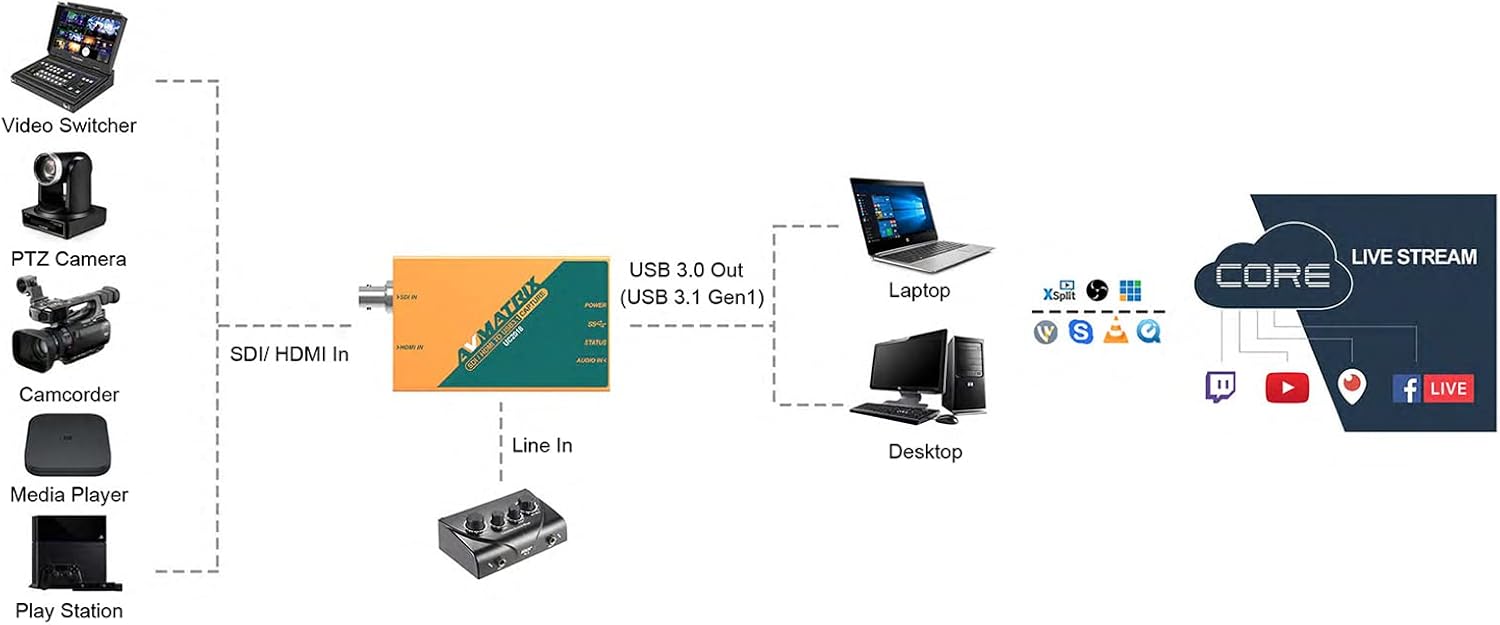

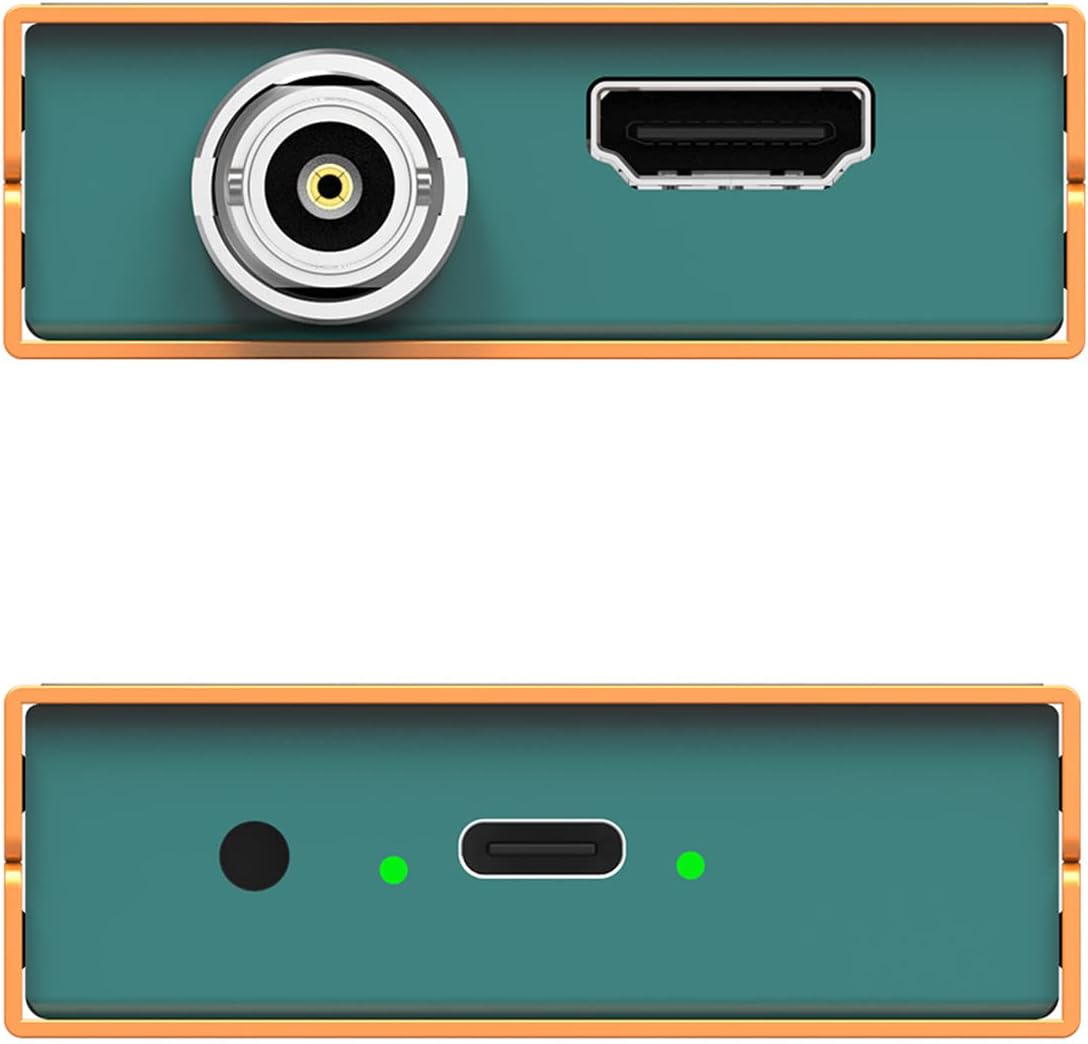

Input Interface: 1×HDMI1.4a, 1×SD/HD/3G-SDI, 1×3.5mm stereo audio (line in)

Output Interface: 1×USB Type-C USB 3.1 Gen1(up to 200MB/s)

FORMAT:

SDI Input Format:

1080p 60/59.94/50/30/29.97/25/24/23.98

1080PsF 30/29.97/25/24/23.98

1080i 50/59.94/60

720p 60/59.94/50/30/29.97/25/24/23.98

625i 50/525i59.94

HDMI Input Format:

1080p 60/59.94/50/30/29.97/25/24/23.98

1080i 50/59.94/60

720p 60/59.94/50/30/29.97/25/24/23.98

576p 50/576i50

480i 59.94/60

480p 59.94/60

USB Output Format:

1920×1080, 1680×1050, 1440×900, 1368×768, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360

Video & Audio Capture: UVC (USB video class) & UAC (USB audio class) standard

Audio Codec: 2-channel, 16 bit PCM, 48kHz, 1536kbps

Video Color Space: YUY2

OTHERS

Supports OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above)

Software Compatibility: OBS studio, Skype, ZOOM, Teams, Google Meet, YoutubeLive, QuikcTime Player, Face time, Wirecast, Ecamm.live, Twitch.tv, etc.

Compatible SDK: DirectShow (Windows), DirectSound (Windows)

Dimensions: 92×58×19mm

Weight: Net weight: 205g, Gross Weight: 300g

Power Consumption: 3.5W (Max)

OperatingTemperature: -20~60°C

StorageTemperature: -30~70°C

Relative Humidity: 20~90%RH (no condensation)

Accessory: 1×USB 3.0 A-C Cable
