Product Highlights:
|
|
|
---|---|---|
Note:
The “L” and “R” gain buttons independently adjust the gain. So if the microphone is inserted in the “L” area, the volume of the microphone is controlled by the “L” gain button. If the microphone is inserted in the “R” area, then these microphones are controlled by the “R” gain button.
1.48V Phantom power on (full load),working time is up to 6 hours
2.48VPhantom power off, working time of 9V battery is up to 40 hours

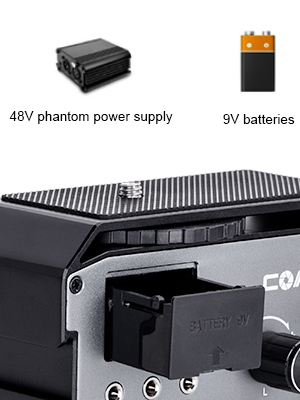

【Two Power Supply Methods】You can choose between 9V battery or 48V phantom power.48V phantom power supply, Low power consumption,working time can be up to 40 hours.
【Three Input Interfaces】The CVM-AX3 audio mixer has dual XLR/6.35mm/3.5mm mics Input Interfaces, supporting two XLR microphones or multiple sets of wireless microphones. It also has two volume adjustment buttons that allow you to independently control the input volume.

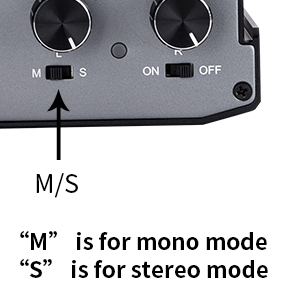

【Mono/Stereo Output Switch】Just adjust the button, you can freely choose the audio output mode you need and get different effects.
【Support Real-time Monitoring】The CVM-AX3 audio mixer also has a Real-time Monitoring jack on the audio mixer that allows you to listen the audio while recording.

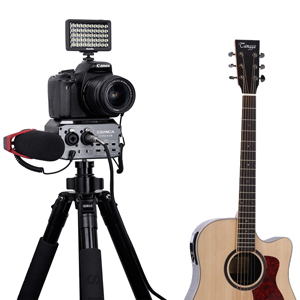

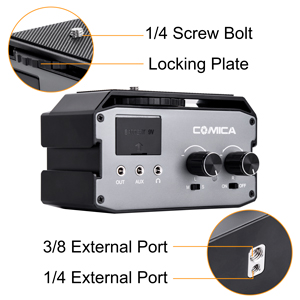

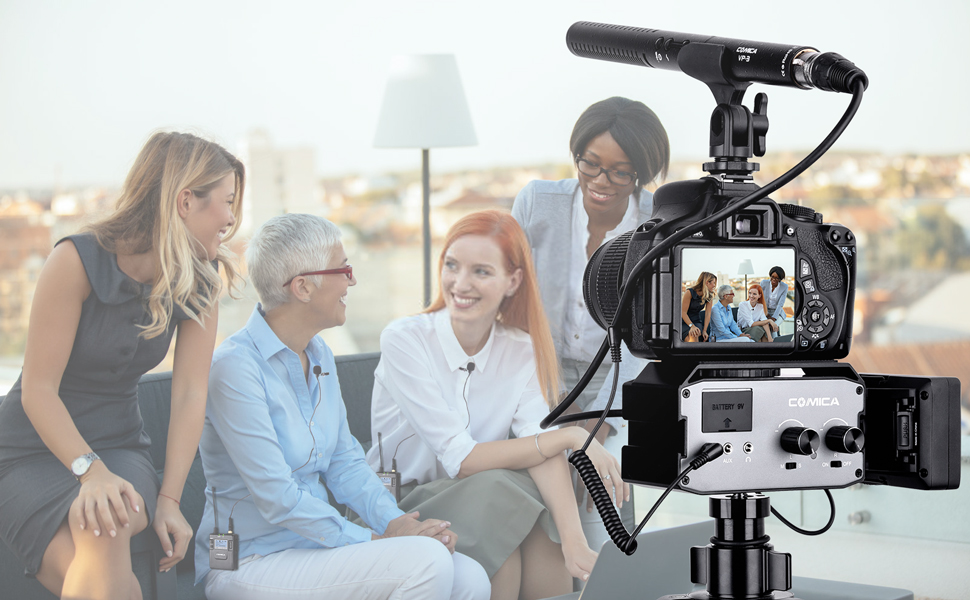

【Unique Design】The audio mixer is made of aluminum and is sturdy and durable. Three cold shoe connectors ideal for shooting videos with any DSLR or camcorder that has a standard mounting shoe.

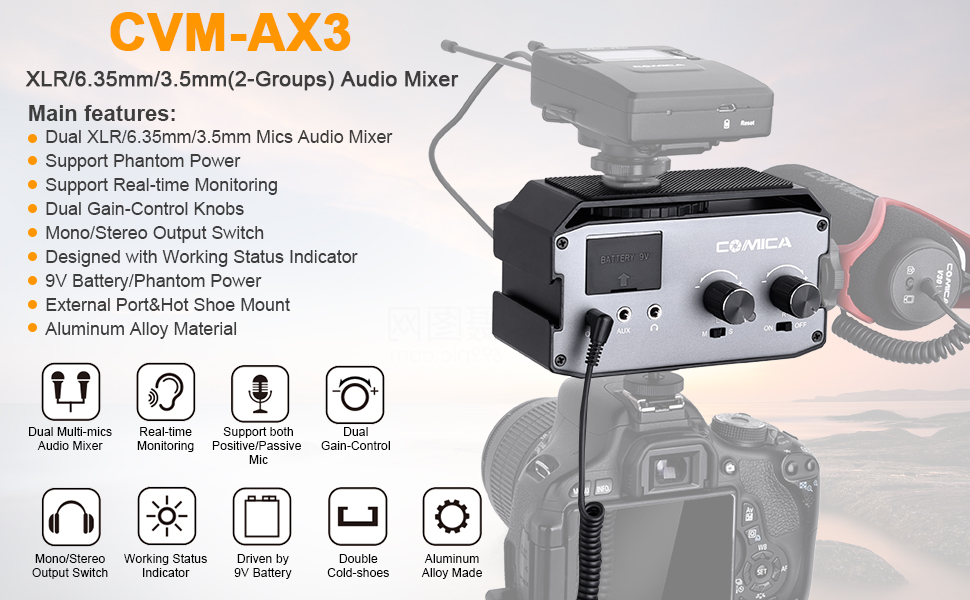

The Comica CVM-AX3 Mixer is a dual XLR/3.5mm/6.35mm Dual-Groups Audio Mixer for shooting videos with any camera and camcorder . It is designed with support positive & passive mic, real-time monitoring, dual gain-control knobs functions etc. It provides a compact audio mixing solution.
Technical Details
Brand Comica
Manufacturer Comica
Model CVM-AX3
Part Number CVM-AX3
Hardware Platform Camcorder, Camera
Voltage 220 Volts
Power source type Corded Electric
Batteries Included No
batteries required No
Connector Type XLR
Material Type Aluminum
Includes Rechargable Battery No
Includes Ac Adapter No
Manufacturer comica
Item model number CVM-AX3
Product Dimensions 14.38 x 9.68 x 14 cm; 462.66 Grams
ASIN B07H2TN4LJ
Specification
1.48V Phantom power on (full load),working time is up to 6 hours
2.48VPhantom power off, working time of 9V battery is up to 40 hours

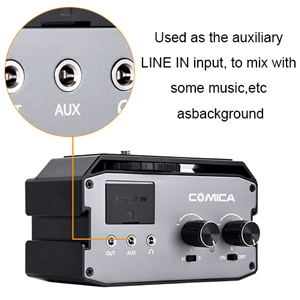

Input: XLR x 2(L/R), 6.35mm x 2(L/R), Mono x 2(L/R), Stereo x 1(S), AUX
Output : 3.5mm audio output, 3.5mm headphone output
Frequency Response : 20Hz~20kHz, ±1dB
THD+Noise: <0.02%, RL=2kΩ, f=20Hz~20kHz, Vo=1Vrms
Battery : 9V 6LR61/6F22 x 1
Size : 123 x 71 x 60.6mm
Net Weight : 460g
